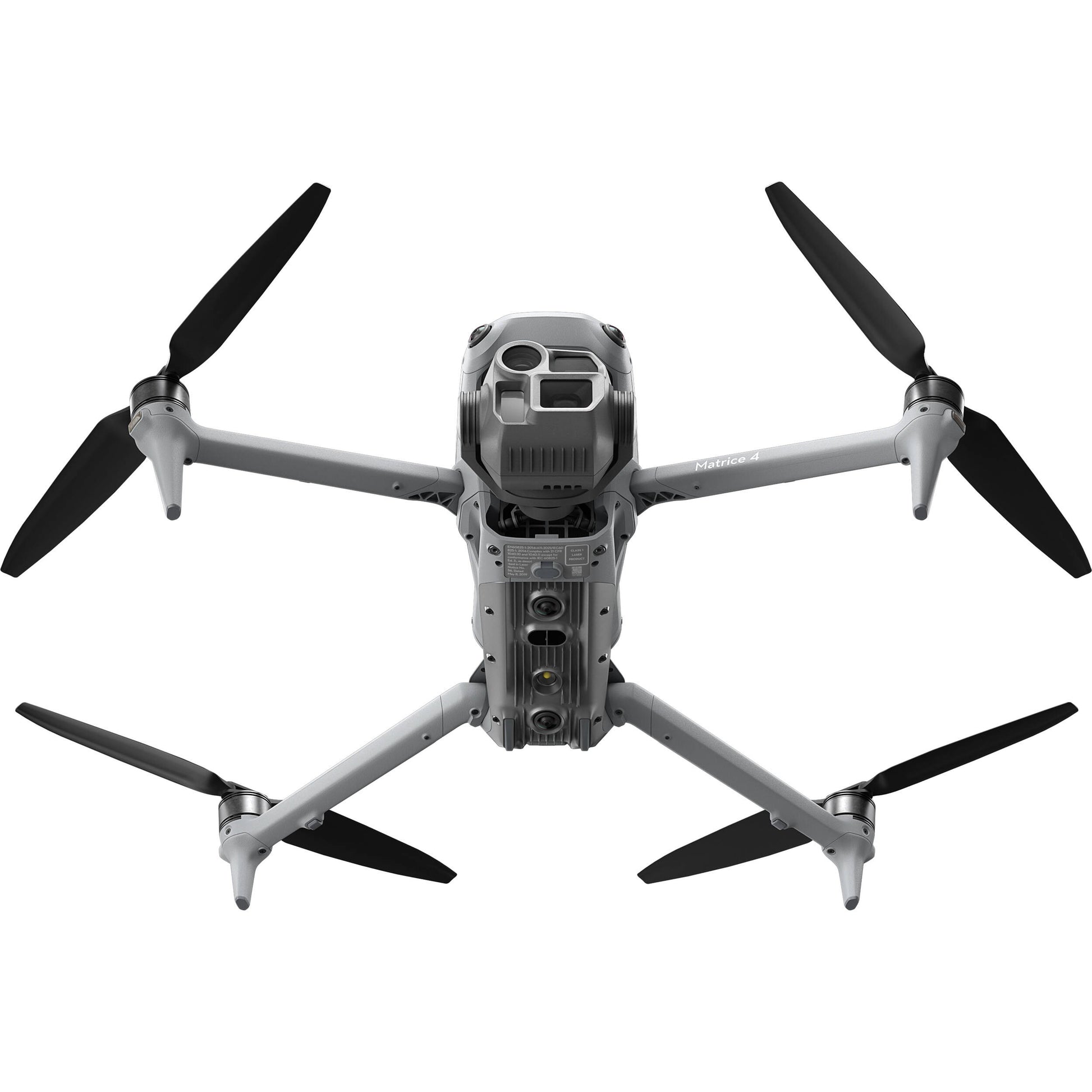

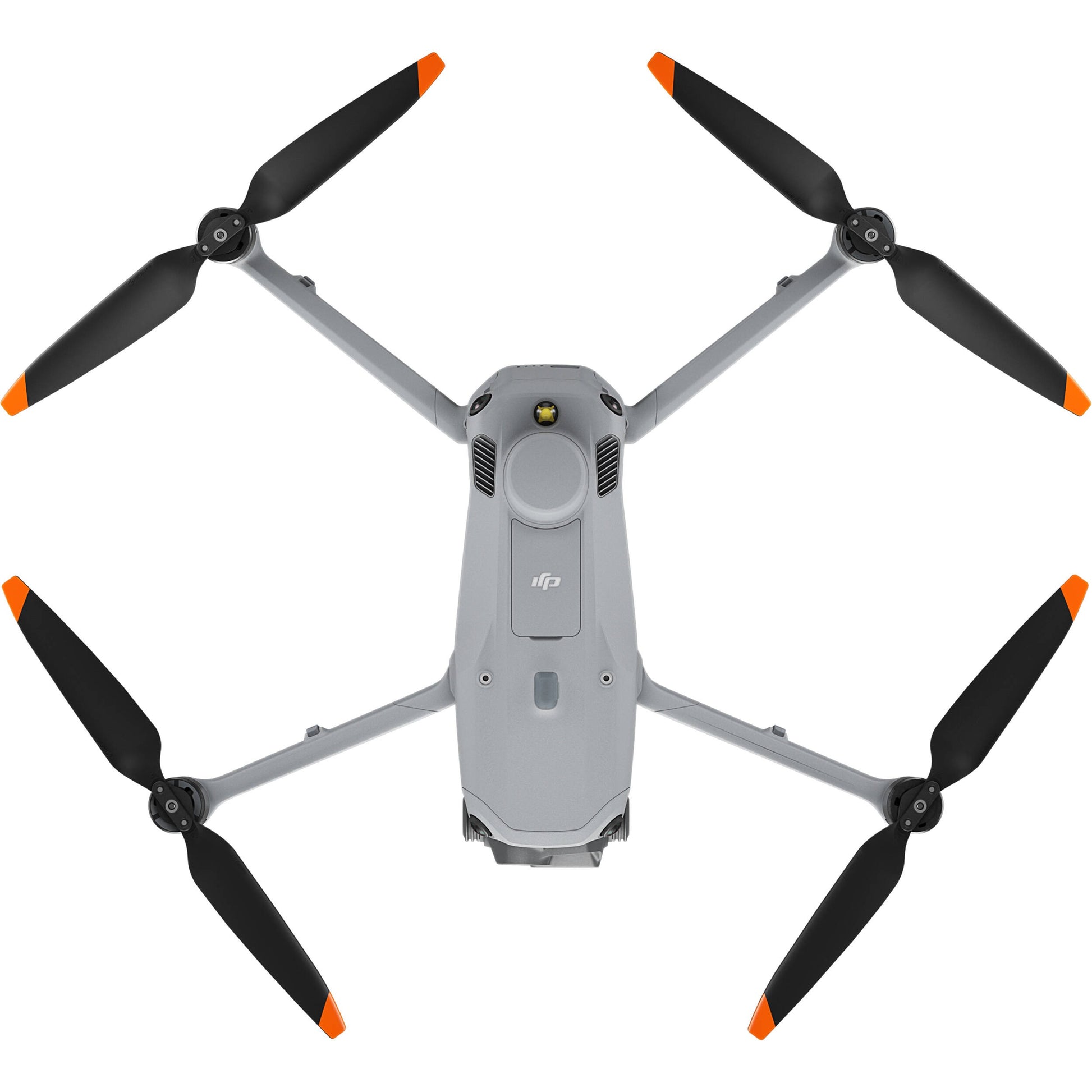

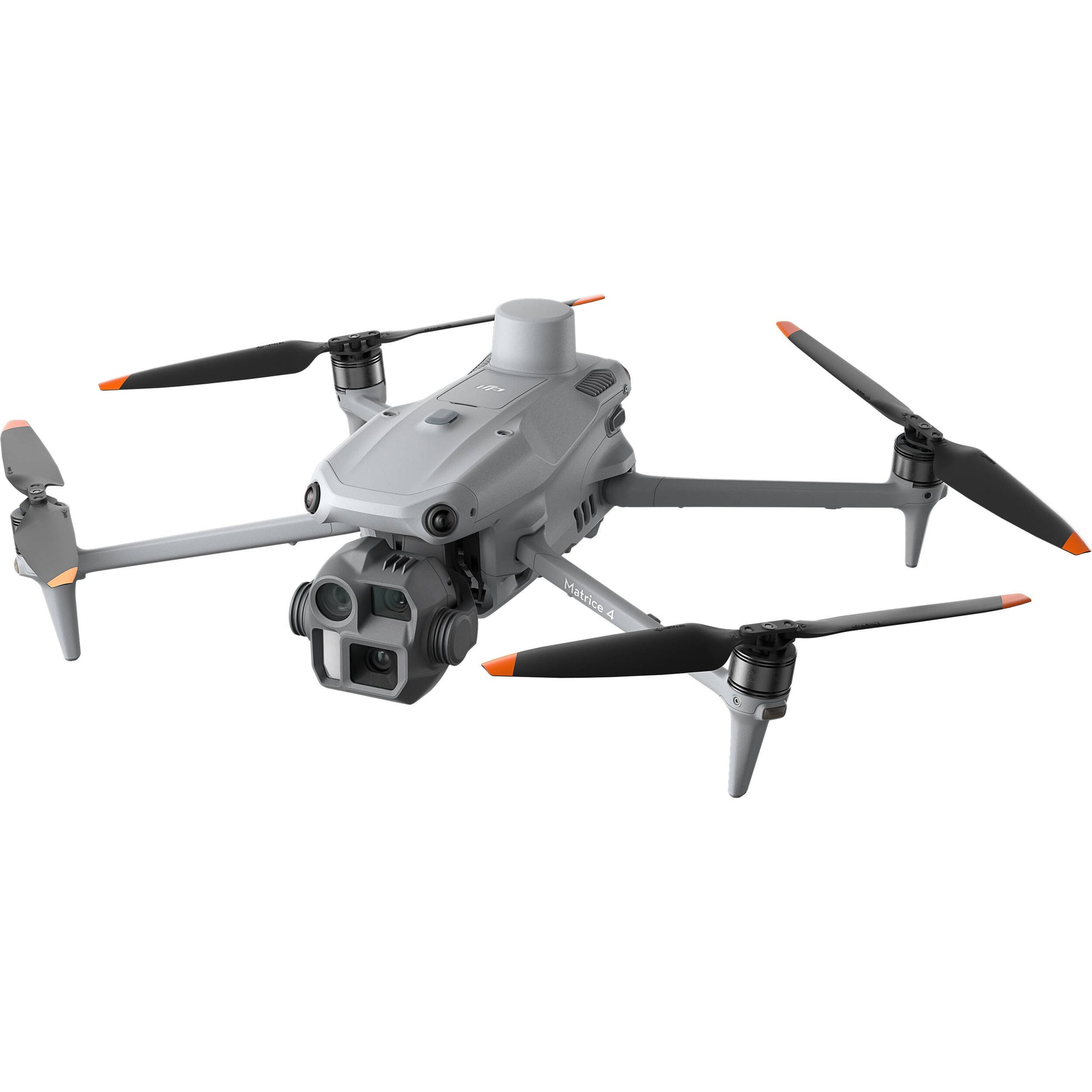

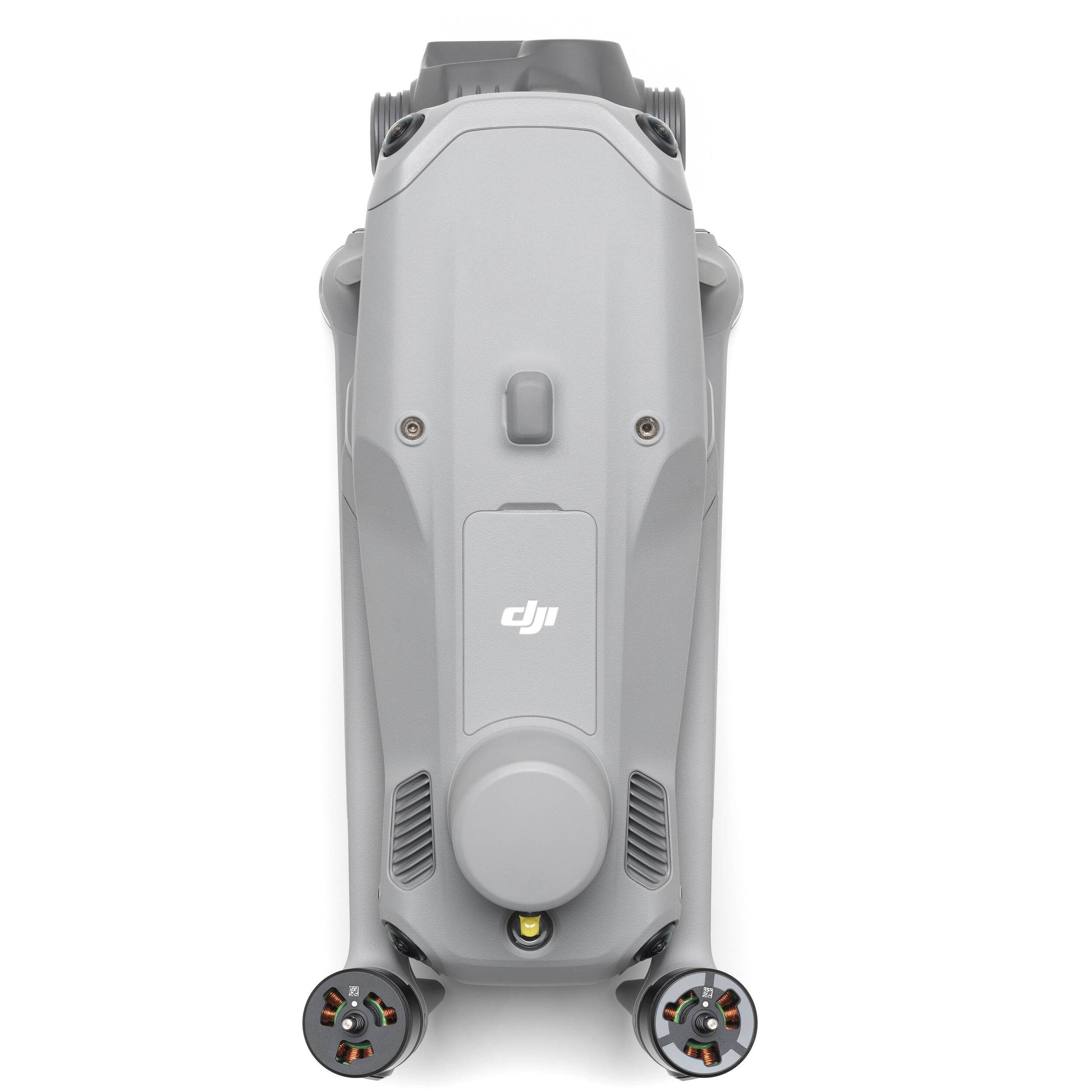

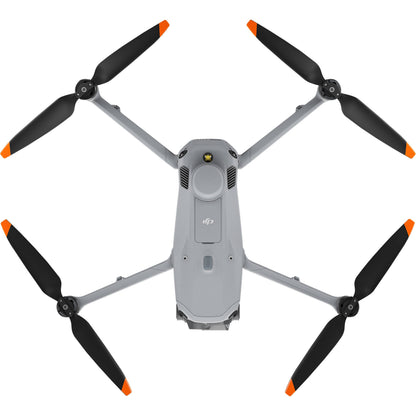

Aircraft
Takeoff Weight (with propellers)：1219 g*
* The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
Takeoff Weight (with Low-Noise propellers)：1229 g*
* The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
Max Takeoff Weight：
Low-Noise Propellers: 1430 g
Dimensions：
Unfolded: 307.0×387.5×149.5 mm (L×W×H)
Maximum dimensions excluding propellers.
Max Payload：200 g
Propeller Size：10.8 in
Diagonal Wheelbase：438.8 mm
Max Ascent Speed：10 m/s
Maximum Ascent Speed With Accessories：6 m/s
Max Descent Speed：8 m/s
Max Descent Speed With Accessories：6 m/s
Max Horizontal Speed (at sea level, no wind)：
21 m/s
21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways*
* No faster than 19 m/s with Sport mode in EU regions.
Max Altitude：6000 m
Max Operating Altitude with Payload：4000 m
Max Flight Time (without wind)：
46 min (low-noise propellers)
Measured with the aircraft flying at approximately 9 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Max Hover Time (without wind)：
39 min (low-noise propellers)
Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%.
Max Flight Distance (no wind)：
32 km (low-noise propellers)
Measured with the aircraft flying at approximately 14 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Max Wind Speed Resistance：12 m/s*
* Max wind speed resistance during takeoff and landing.
Max Pitch Angle：35°
Operating Temperature：-10℃ to 40℃ (14°F to 104°F)
GNSS：GPS + Galileo + BeiDou + GLONASS*
* GLONASS is supported only when the RTK module is enabled.
Hovering Accuracy Range (windless or breezy)：
RTK GNSS Accuracy：
1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
Internal Storage：N/A
Ports：
E-Port Lite interface × 1: supports USB connection to DJI tuning software and some third-party PSDK devices.
Accessories or expansion modules must be installed before powering on.
Propeller Model：
1154F (low noise propeller)
Beacon：Built into the aircraft
Camera
Image Sensor：
Wide:
1/1.3-inch CMOS, Effective Pixels: 48 MP
Medium Tele Camera:
1/1.3-inch CMOS, Effective Pixels: 48 MP
Telephoto:
1/1.5-inch CMOS, Effective Pixels: 48 MP
DJI Matrice 4E
Wide:
4/3-inch CMOS Effective Pixels: 20 MP
Medium Tele Camera:
1/1.3-inch CMOS, Effective Pixels: 48 MP
Telephoto:
1/1.5-inch CMOS, Effective Pixels: 48 MP
Lens：
FOV: 82°
Equivalent Focal Length: 24 mm
Aperture: f/1.7
Focus: 1 m to ∞
DJI Matrice 4E
FOV: 84°
Equivalent Focal Length: 24 mm
Aperture: f/2.8-f/11
Focus: 1 m to ∞
Medium Tele Camera
FOV: 35°
Equivalent Focal Length: 70 mm
Aperture: f/2.8
Focus: 3 m to ∞
Tele camera
FOV: 15°
Equivalent Focal Length: 168 mm
Aperture: f/2.8
Focus: 3 m to ∞
ISO Range：
Night Scene Mode:
Matrice 4T:
Wide Camera: ISO 100 to ISO 409600
Midum Tele Camera: ISO 100 to ISO 409600
Tele Camera: ISO 100 to ISO 819200
Matrice 4E:
Wide Camera: ISO 100 to ISO 204800
Midum Tele Camera: ISO 100 to ISO 409600
Tele Camera: ISO 100 to ISO 409600
Shutter Speed：
2-1/8000 s
DJI Matrice 4E
Wide:
Electronic Shutter: 2-1/8000 s
Mechanical Shutter: 2-1/2000 s
Medium Telephoto: 2-1/8000 s
Telephoto: 2-1/8000 s
Max Photo Size：
Wide: 8064 × 6048
Medium Telephoto: 8064 × 6048
Telephoto: 8192 × 6144
DJI Matrice 4E
Wide: 5280 × 3956
Medium Telephoto: 8064 × 6048
Telephoto: 8192 × 6144
Minimum Photo Interval：
DJI Matrice 4E: 0.5 s
Still Photography Modes：
Wide:
Single: 12 MP/48 MP
Interval: 12 MP/48 MP
JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting:12MP
Panorama: 12 MP (raw image);100 MP (stitched image)
Medium Tele Camera:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting: 12MP
Telephoto:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting：12MP
DJI Matrice 4E:
Single: 20 MP
Interval: 20 MP
JPEG：0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
JPEG + RAW：2/3/5/7/10/15/20/30/60 s
Smart Shooting: 20 MP
Panorama: 20 MP (raw image);100 MP (stitched image)
Medium Tele Camera:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting：12 MP
Telephoto:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting: 12 MP
Video Codec and Resolution：
Coding Strategy: CBR, VBR
Resolution:
4K: 3840 × 2160@30fps
FHD: 1920 × 1080@30fps
Max Video Bitrate：
H.265: 40Mbps
Supported File System：exFAT
Photo Format：
DJI Matrice 4T: JPEG
DJI Matrice 4E:
Wide: JPEG/DNG (RAW)
Medium Tele Camera: JPEG
Telephoto: JPEG
Video Format：
Digital Zoom：
Telephoto:
16x (112x hybrid zoom)
NIR Auxiliary Light
Infrared Illumination：
FOV: 5.7°±0.3°
Laser Module
Laser Rangefinding：
Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Distance Measurement Accuracy:
1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ
Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)
* Performance degradation may occur in rainy or foggy conditions
Infrared Thermal Camera
Thermal Imager：
DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.
Resolution：DJI Matrice 4T: 640 × 512
Pixel Pitch：DJI Matrice 4T: 12 μm
Frame Rate：DJI Matrice 4T: 30 Hz
Lens：
DJI Matrice 4T equivalent focal length: 53 mm
DJI Matrice 4T Aperture: f/1.0
DJI Matrice 4T Focus: 5 m to ∞
Sensitivity：DJI Matrice 4T: ≤50mk@F1.0
Temperature Measurement Method：DJI Matrice 4T: Spot Meter, Area Measurement
Temperature Measurement Range：
High Gain Mode: -20℃ to 150℃ (-4°F to 302°F) ()
Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)
Palette：
White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo Format：DJI Matrice 4T：JPEG (8bit)、 R-JPEG (16bit)
Video Resolution：
1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated)
Other conditions: 640 × 512@30fps
Video Bitrate：
6.5Mbps (H.264 640 × 512@30fps)
5Mbps (H.265 640 × 512@30fps)
12Mbps (H.264 1280 × 1024@30fps)
8Mbps (H.265 1280 × 1024@30fps)
Video Format：DJI Matrice 4T：MP4
Still Photography Modes：
Single: 1280 × 1024/640 × 512
Interval: 1280 × 1024/640 × 512
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
Photo Resolution：
Infrared: 1280 × 1024 (Super Resolution on)
640 × 512 (Super Resolution off)
Digital Zoom：DJI Matrice 4T: 28x
Infrared Wavelength：DJI Matrice 4T: 8um to 14um
Infrared Temperature Measurement Accuracy：
DJI Matrice 4T: Low Gain: ±5℃ or ±3%, whichever is greater
Gimbal
Stabilization System：
DJI Matrice 4E：3-axis (tilt, roll, pan)
Mechanical Range：
Gimbal Mechanical Limits:
Tilt: -140° to 113°
Roll: -52° to 52°
Pan: -65° to 65°
Soft Limits:
Tilt: -90° to 35°
Roll: -47° to 47°
Pan: -60° to 60°
DJI Matrice 4E
Gimbal Mechanical Limits:
Tilt: -140° to 50°
Roll: -52° to 52°
Pan: -65° to 65°
Soft Limits:
Tilt: -90° to 35°
Roll: -47° to 47°
Pan: -60° to 60°
Controllable Rotation Range：
Tilt: -90° to 35°
Pan: Not controllable
DJI Matrice 4E
Tilt: -90° to 35°
Pan: Not controllable
Max Control Speed (tilt)：100°/s
Angular Vibration Range：±0.007°
Yaw Axis：
The MSDK interface program is controllable.
Ingress Protection Rating：No Standard Protection Level
Operating Temperature：Standard: -10°C to 40°C (14°F to 104°F)
Sensing
Sensing Type：
Forward：
Measurement Range: 0.4-200 m
Obstacle Avoidance Speed: Flight Speed ≤21 m/s
FOV: 90° (horizontal), 135° (vertical)
Backward：
Measurement Range: 0.4-200 m
Obstacle Avoidance Speed: Flight Speed ≤21 m/sField of View (FOV)-90° (horizontal), 135° (vertical)
Lateral：
Measurement Range: 0.5-200 m
Obstacle Avoidance Speed: Flight Speed ≤21 m/s
FOV: 90° (horizontal), 90° (vertical)
Downward：
Obstacle Avoidance Speed: Flight Speed ≤10 m/s
The FOV to the front and rear is 160° and 160° to the right and left.
Operating Environment：
Delicate texture on the surface, adequate light.
Downward:
The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.).
* Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.
Video Transmission
Video Transmission System：O4 Enterprise
Live View Quality：Remote Controller: 1080p/30fps
Operating Frequency：
2.400-2.4835 GHz
5.725-5.850 GHz
5.150-5.250 GHz (CE)
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP)：
5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE)
5.15-5.25: < 23 dBm (FCC/CE)
Max Transmission Distance (unobstructed, free of interference)：
12 km (CE)
12 km (SRRC)
12 km (MIC)
Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Max Transmission Distance (with interference)：
Medium Interference - Suburban Areas (approx. 5-15 km)
Micro interference：Suburbs/Seasides (approx. 15-25 km)
* Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
Max Download Speed：20 MB/s
The above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.
Latency (depending on environmental conditions and mobile device)：130 ms
Under near-field interference-free conditions, the Latency performance when shooting with a 1x lens.
Antenna：8 antennas, 2T4R
Others：Cellular Dongle Compartment
Memory Card
Supported SD Cards：
Recommended microSD Cards：
Lexar 1066x 128GB U3 A2 V30 microSDXC
Lexar 1066x 256GB U3 A2 V30 microSDXC
Lexar 1066x 512GB U3 A2 V30 microSDXC
Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC
Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC
Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC
Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC

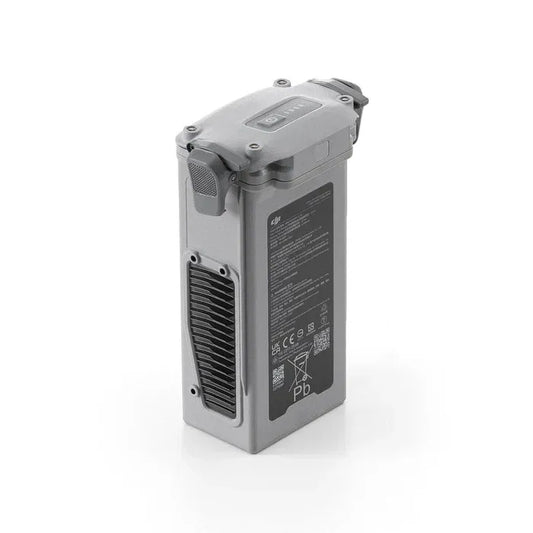

Intelligent Flight Battery
Capacity：6741 mAh
Standard Voltage：14.76 V
Max Charging Voltage：17.0 V
Cell Type：Li-ion 4S
Energy：99.5 Wh
Weight：401 g
Recharging Temperature：5°C to 40°C (41°F to 104°F)
Discharge Rate：4C
Max Charging Power：1.8C
Supports low-temperature charging：Not supported
Cycle Count：200
Power Adapter (100W)
Input：100-240 V (AC), 50-60 Hz, 2.5 A
Output：Max. 100 W (total)
When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.
Rated Power：100 W
Charging Hub
Input：USB-C：5-20 V, max 5 A
Output：Battery Interface: 11.2 V to 17 V
Rated Power：100 W
Recharging Type：
Support Standard Mode (100% SOC) and Standby Mode (90% SOC)
Compatible Battery：
Charging Temperature：5° to 40° C (41°F to 104°F)
DJI RC Plus 2 Enterprise
Video Transmission System：O4 Enterprise
Max Transmission Distance (unobstructed, free of interference)：
12 km (CE)
12 km (SRRC)
12 km (MIC)
Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Operating Band of Image Transmission：
5.725 - 5.850 GHz
5.1GHz (receive only)
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Antenna：
Video Transmission Transmitter Power (EIRP)：
5.1 GHz: <23 dBm (CE)
5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
4G Transmission：DJI Cellular Dongle 2
Wi-Fi Protocol：
Support 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS)
Wi-Fi Operating Band：
5.150-5.250 GHz
5.725-5.850 GHz
5.8 and 5.2GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.
Wi-Fi Transmitter Power (EIRP)：
5.1 GHz: <23 dBm (FCC)
5.8 GHz ＜23 dBm (FCC/SRRC), ＜14 dBm (CE)
Bluetooth Protocol：Bluetooth 5.2
Bluetooth Operating Frequency：2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)：<10 dBm
Screen Resolution：1920 × 1200
Screen Size：7.02 inches
Screen Frame Rate：60 fps
Brightness：1400 nits
Touchscreen Control：10 Points Multi-touch
Built-in Battery：2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh
External Battery：Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh
Recharging Type：
Storage Capacity：ROM 128 G + expandable storage via microSD card
Charging Time：
When remote controller is powered off and using a standard DJI charger.
Internal Battery Runtime：3.8 hrs
External Battery Runtime：3.2 hrs
Output Port：HDMI 1.4
Indicators：
Speaker：Supports buzzer
Audio：Array MIC
Operating Temperature：-20° to 50° C (D228 (-4°F to 122°F)
Storage Temperature：
One to three months: -30° to 35° C (-22°F to 95°F)
Three months to one year: -30° to 30° C (-22°F to 86°F)
Recharging Temperature：5° to 40° C (41°F to 104°F)
Supported Aircraft Models：Support for Matrice 4T/4E
GNSS：GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh.
Dimensions：268×163×94.5 mm (L×W×H)
Width including external antenna folded, thickness including handle and controller sticks.
Weight：1.15 kg (without external battery)
Model：TKPL 2
System Version：Android 11
External Interfaces：
Accessory：Optional strap/waist support
AL1 Spotlight
Weight：
Approx. 91 g (excluding bracket)
Dimensions：
79×164×28 mm (L×W×H, without bracket)
Max. Power：32 W
Illuminance：4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters
The data was measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25°C.
Effective Illumination Angle：23° (10% relative illumination)
Effective Illumination Area：
2,200 square meters @ 100 meters (10% central illuminance, Wide fov Mode)
Operating Mode：Supports always-on and strobe modes.
Gimbal Structural Design Range：Tilt: -140° to 50°
Controllable Range：Tilt: -90° to 35°
Max Control Speed (tilt)：120°/s
Gimbal Alignment Accuracy：±0.1°
Operating Temperature：-20°C to 50°C (-4°F to 122°F)
Mounting：Quick-release hand-tightened screws
AS1 Speaker
Weight：
Approx. 90 g (excluding bracket)
Dimensions：
73×70×47 mm (L×W×H, without bracket)
Max. Power：15 W
Max. Volume：At 1 meter, it can reach 114 decibels (114dB@1m).
Data measured in a laboratory environment at 25℃. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
Effective Broadcast Distance：300 m
Data measured in a laboratory environment at 25℃. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
Broadcast Mode：
* Need to upgrade to the latest firmware.
** Currently only supports Chinese and English.
Operating Temperature：-20°C to 50°C (-4°F to 122°F)
Mounting：Quick-release hand-tightened screws
