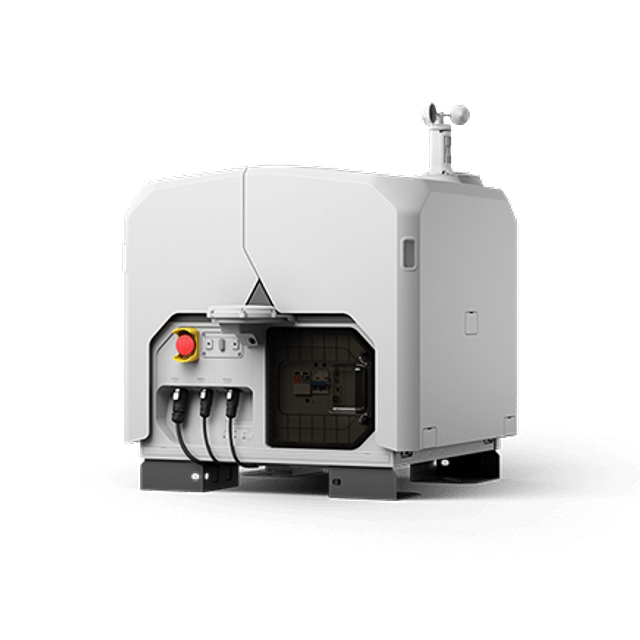

• DJI dock 3 with control panel on a transparent background
1 11

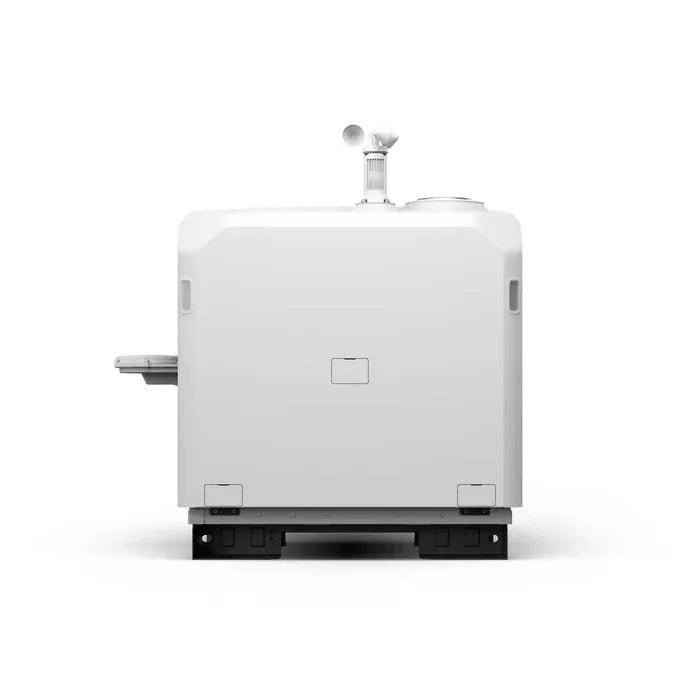

DJI Dock 3 (Dock Only)

DJI Dock 3 (Dock Only)

6937224108080

$10,999.00
$10,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

DJI Dock 3 Features:

  • DJI's First Dock Adaptable for Vehicle Mounting
  • Master All Environment
  • Vehicle-Mounted Deployment
  • Flexible Deployment, Ultra-Long Transmission
  • High-Performance Drones, Equipped with Matrice 4D or Matrice 4TD
  • Efficient Operation with Intelligent Features

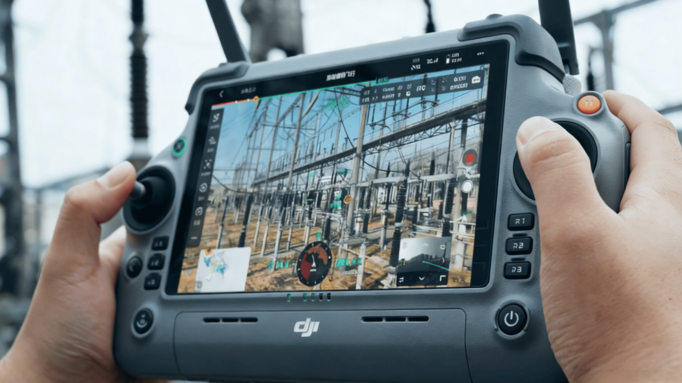

  • Enhance Experience With Advanced Software
  • Secure and Compliant, Open Ecosystem
Request Wholesale
View full details

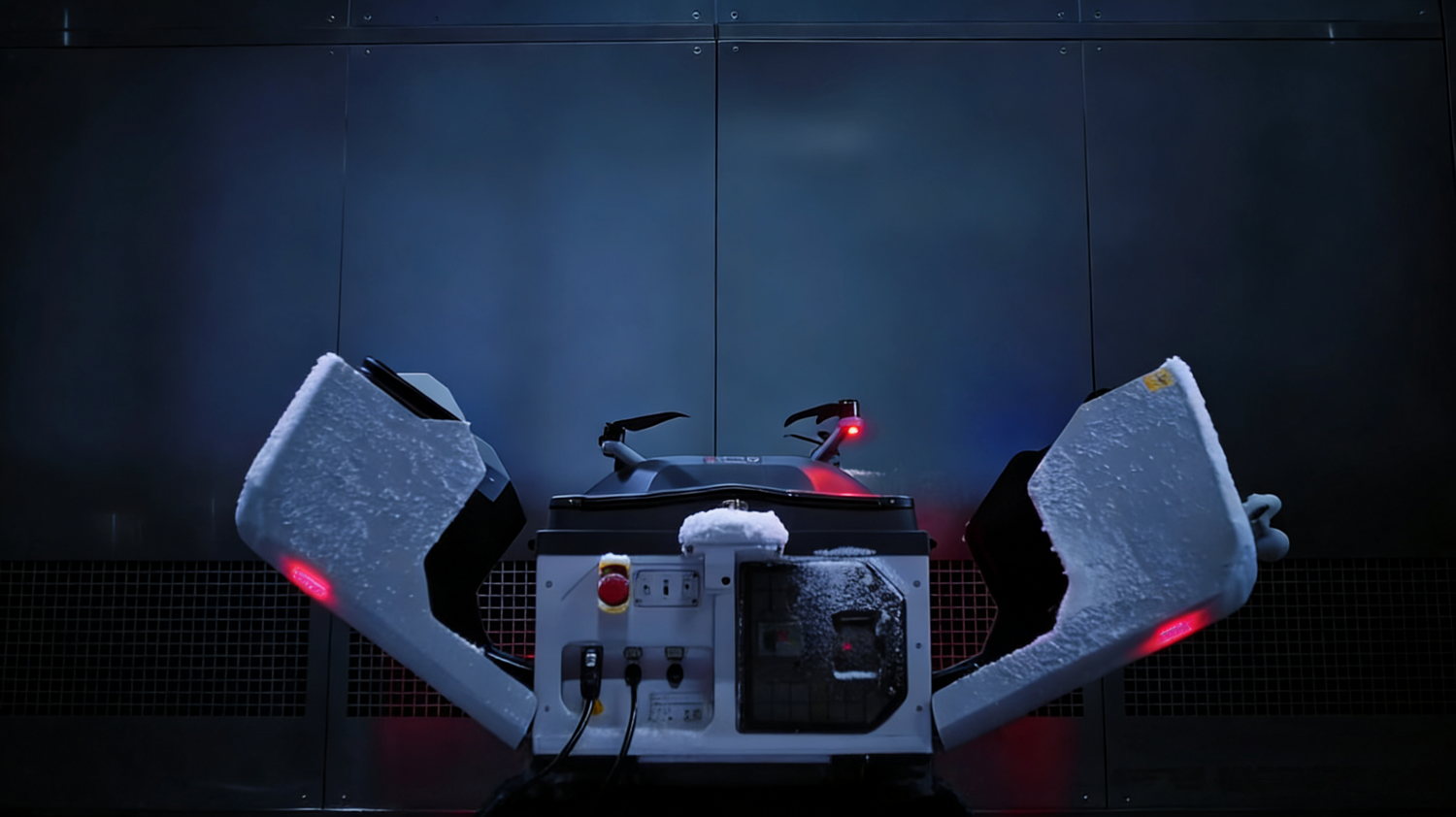

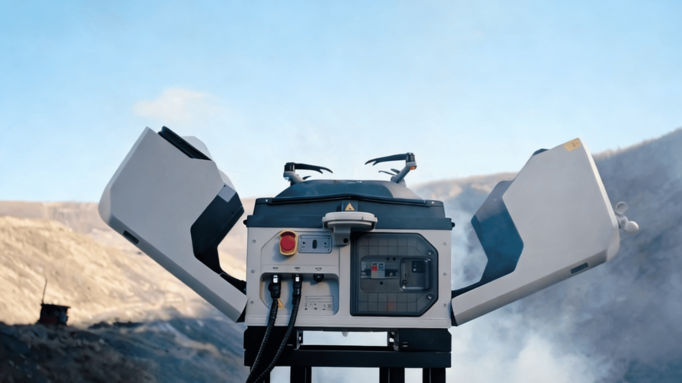

Extremely heat and cold resistant

DJI Dock 3 operates and charges seamlessly even in temperatures soaring up to 50° C (122° F), ensuring efficient operations. Perform critical tasks reliably despite frigid temperatures in environments where temperatures can plunge below -20°C (-4°F).

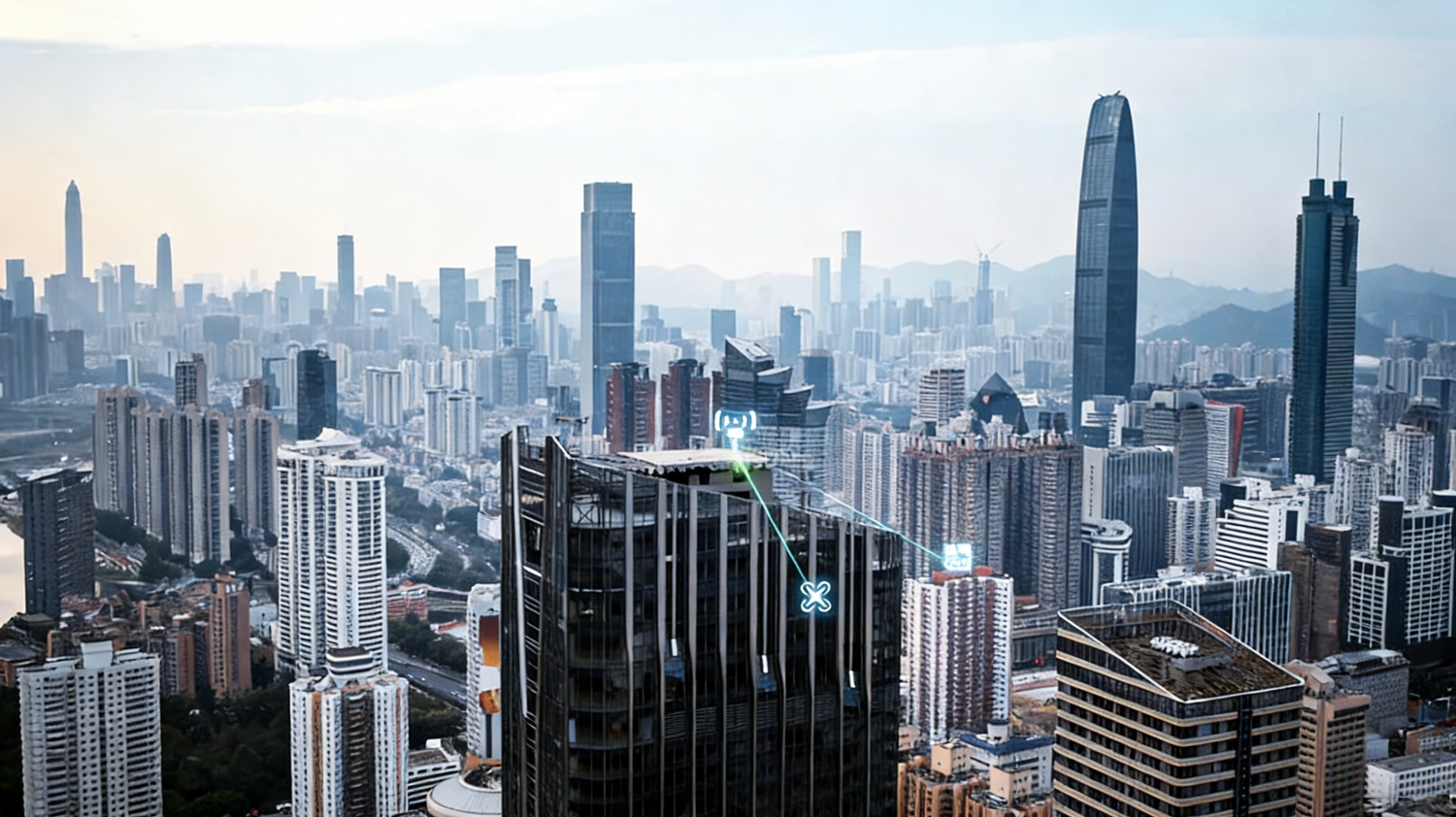

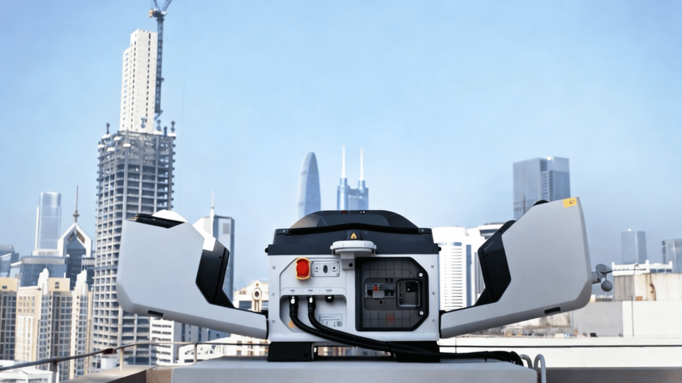

Fixed-Mounted Deployment

The new D-RTK 3 Relay Fixed Deployment Version[4]offers superior anti-interference performance for video transmission and satellite acquisition. Installing it at elevated locations can effectively address RTK and video transmission signal issues caused by obstructions, extending the maximum transmission distance to 25 km. This capability allows for flexible site selection of Dock 3 based on actual operational needs.

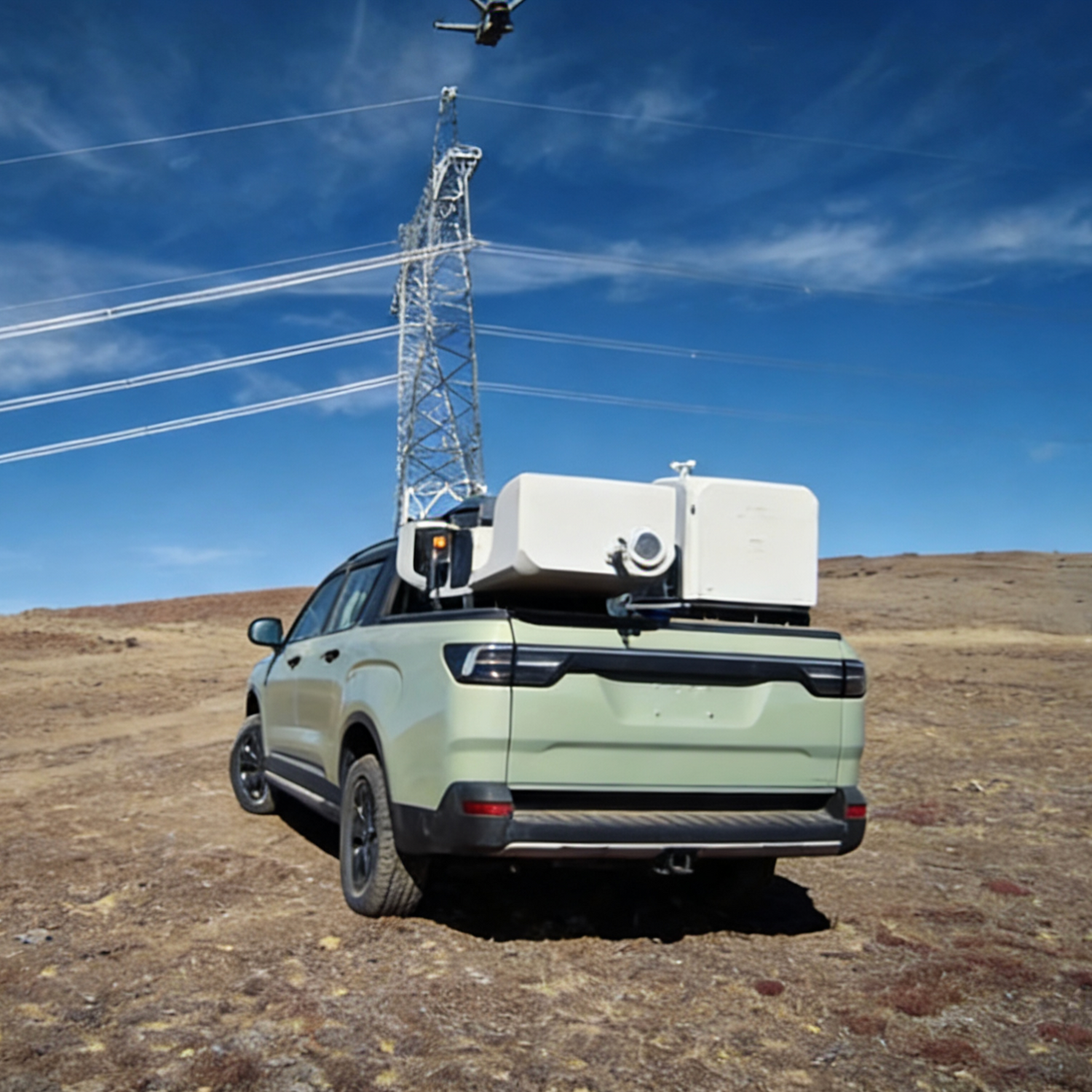

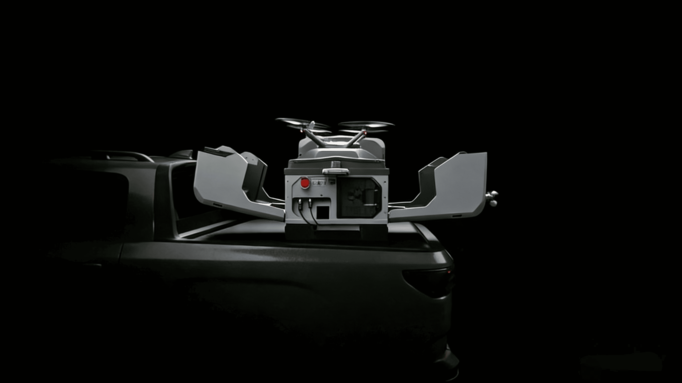

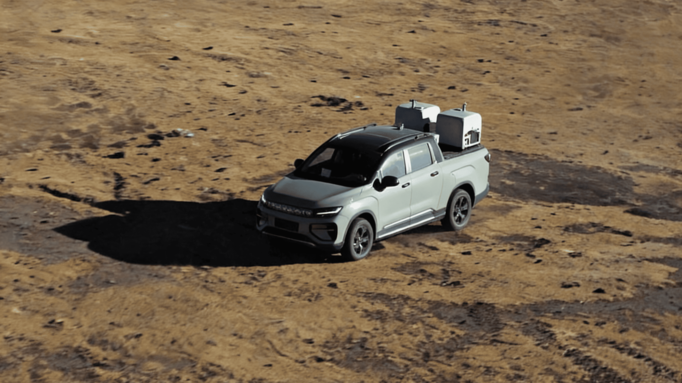

Mobile Vehicle-Mounted Deployment

DJI Dock 3 is DJI's first Dock to support mobile vehicle-mounted deployment,with new features such as horizontal calibration and cloud-based dock location calibration. For emergency operations or long-distance inspections, using DJI Dock 3 Vehicle-Mounted Gimbal Mount[4]for mobile deployment provides a convenient solution when fixed deployment is impractical in temporary scenarios.

Obstacle Sensing for Safe Operation

The Obstacle Sensing Module[4]for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions.[5]Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.

10km Max Effective Operating Radius

Dock 3's design safeguards its internal systems from external conditions by encapsulating electronic components, allowing for seamless operations even in harsh environments.

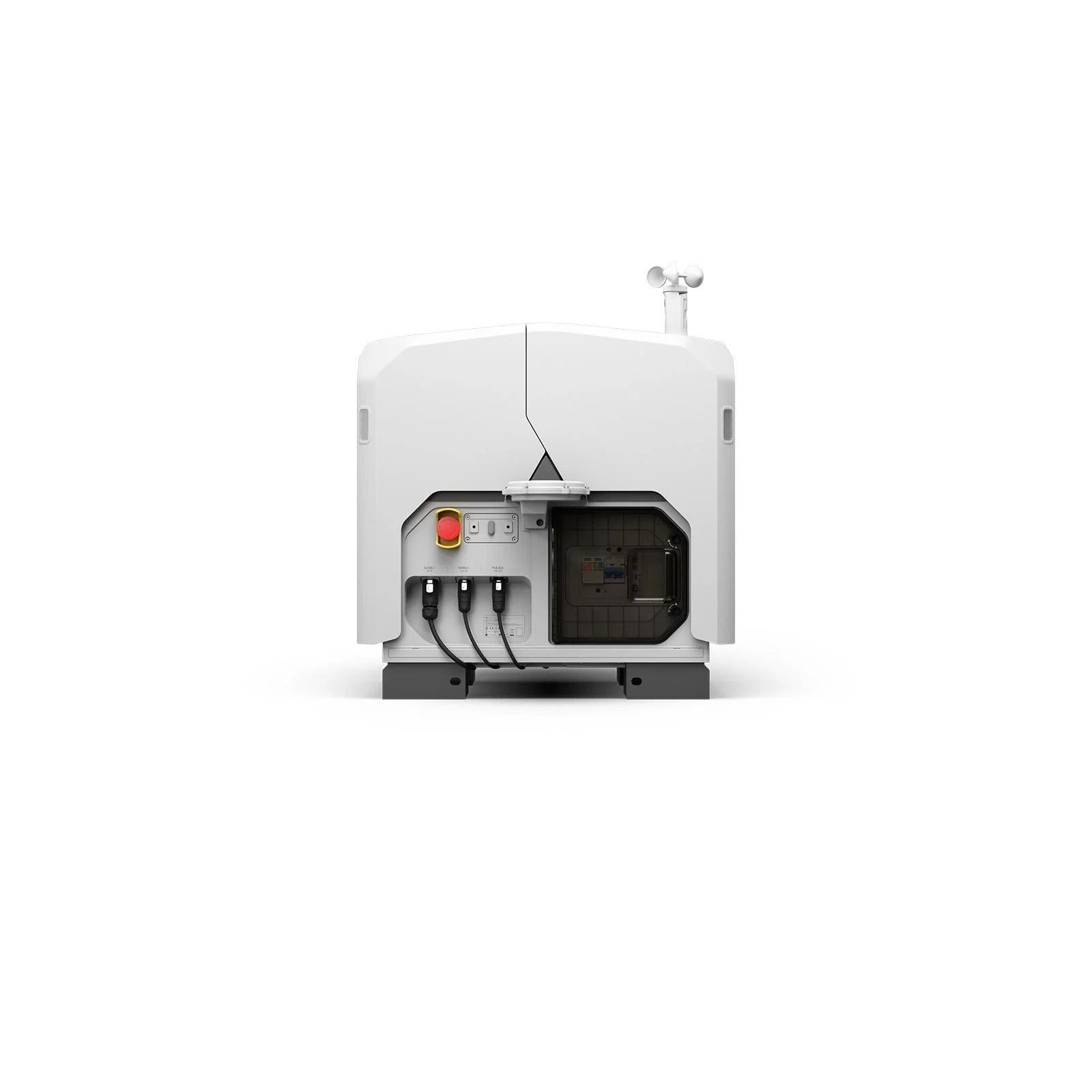

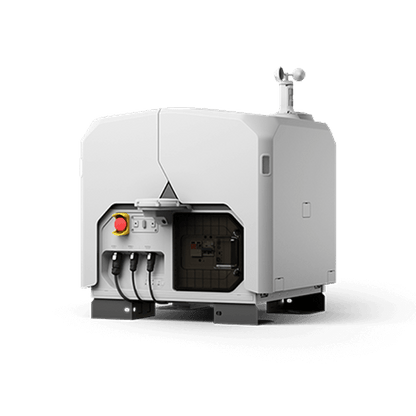

DJI dock 3 with control panel on a transparent background

Packaging

(1) Dock Body (incl. Ground Wire)
(1) Wind Speed Gauge Module
(4) Expansion Bolt
(1) Ethernet Cable Connector
(1) Power Cable Connector
(6) Wire Ferrule
(1) Screws and Tools
(1) Manuals

Specs

Product Name：DJI Dock 3

Total Weight：55 kg (without aircraft)

The actual product weight may vary due to differences in batch materials and external factors.

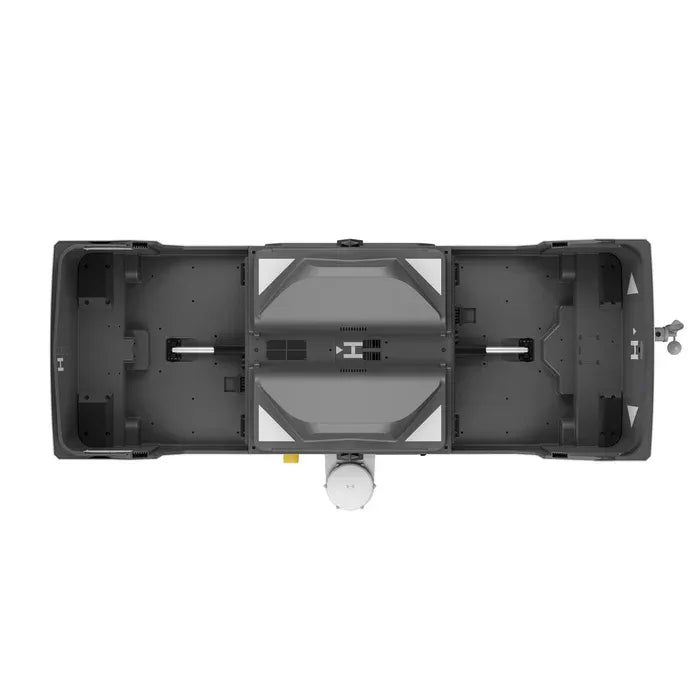

Dimensions：Dock Cover Opened: 1760×745×485 mm (L×W×H)
Dock Cover Closed: 640×745×770 mm (L×W×H)

All data includes the RTK module width (160 mm), wind speed gauge height (145 mm), and mounting base brackets (58 mm).

Input Voltage：100-240 V (AC), 50/60 Hz

Input Power：Max 800 W

Operating Temperature：-30° to 50° C (-22° to 122° F)

Ingress Protection Rating：IP56

Number of Drones Accommodated：1

Max Allowable Landing Wind Speed：12 m/s

Max Operating Altitude：4500 m

Receiving Frequency of RTK Base Station Satellite：

Simultaneously receive:
GPS: L1 C/A, L2, L5
BeiDou: B1l, B2l, B3l, B2a, B2b, B1C
GLONASS: F1, F2
Galileo: E1, E5a, E5b, E6
QZSS: L1, L2, L5

Positioning Accuracy of RTK Base Station：Horizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)

Dock - Charging Performance

Output Voltage：35 V DC

Charging Time：27 minutes

The data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment.

Dock - Video Transmission

Operating Frequency：2.400-2.4835 GHz
5.150-5.250 GHz (CE: 5.170-5.250 GHz)
5.725-5.850 GHz

The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations.

Antenna：Built-in 9 antennas, 2T4R, supports intelligent switching

Transmitter Power (EIRP)：

2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE)
5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)

Dock - Air Conditioning System

Operating Voltage：48 V DC

Air Conditioning Type：Compressor-based air conditioning

Dock - Backup Battery

Battery Capacity：12 Ah

Output Voltage：12 V

Battery Type：Lead-acid battery

Battery Life：> 4 hours

Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly.

Dock- Network Access

Ethernet Access：10/100/1000Mbps adaptive Ethernet port

4G Access：Requires DJI Cellular Dongle 2

Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.

Dock - Sensor

Wind Speed Sensor：Supported

Rainfall Sensor：Supported

Ambient Temperature Sensor：Supported

Water Immersion Sensor：Supported

In-Cabin Temperature Sensor：Supported

In-Cabin Humidity Sensor：Supported

Dock - Security Camera (External)

Resolution：1920×1080

Field of View (FOV)：151°

Auxiliary Light：Auxiliary White Light

Dock - Security Camera (Internal)

Resolution：1920×1080

FOV：151°

Auxiliary Light：Auxiliary White Light

Dock- Lightning Protection

AC Power Port：20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements

Ethernet Port：10 kA (Itotal)，meets EN/IEC 61643-21 Category C protection level requirements

Dock - Supported Software

Applications：DJI Enterprise app (used with Android phones for deployment and commissioning)

Cloud Platform：FlightHub 2
FlightHub 2 On-Premises Version
FlightHub 2 FlightHub Sync
DJI Cloud API

Dock - Expansion Capability

Edge Computing：Supports data communication with external switches
