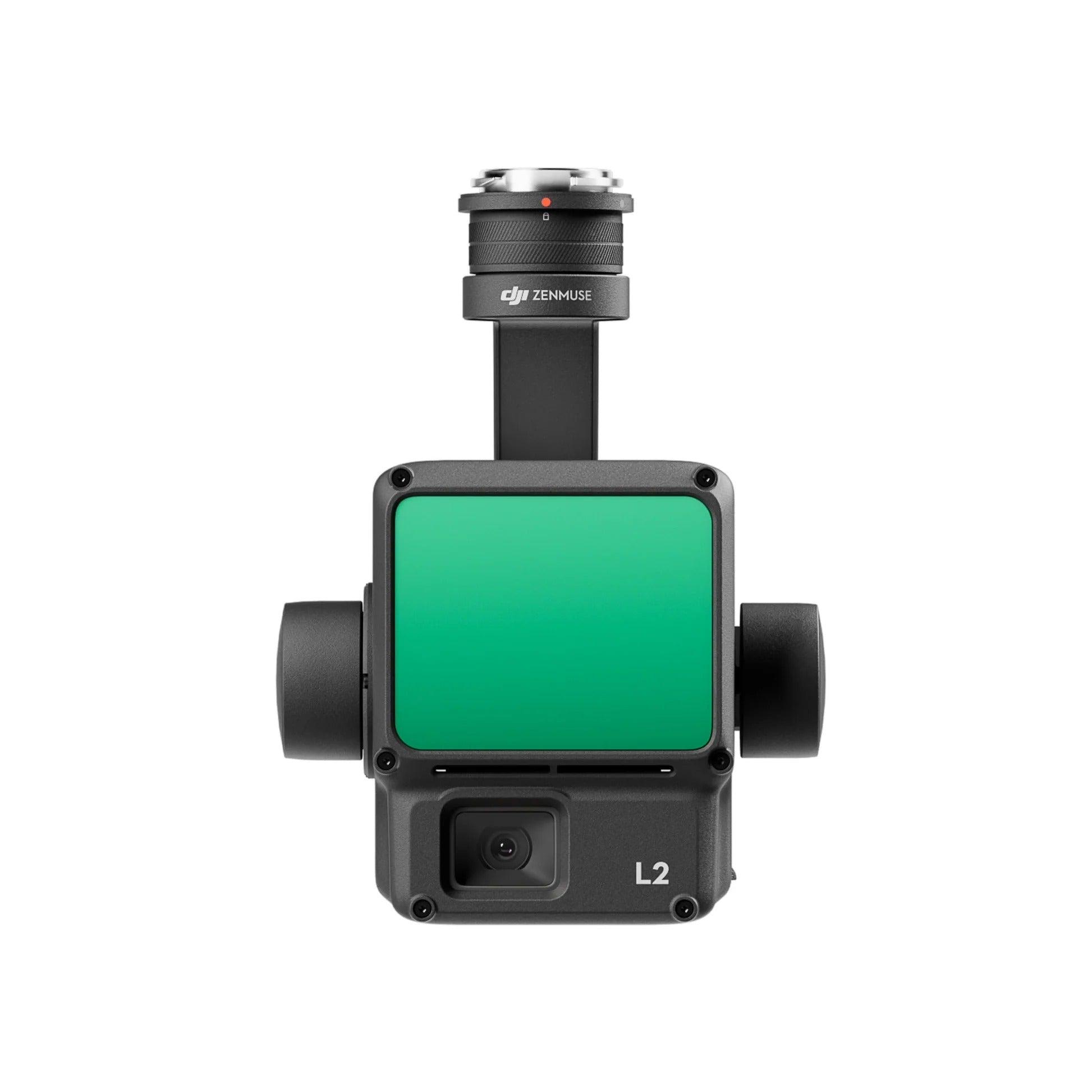

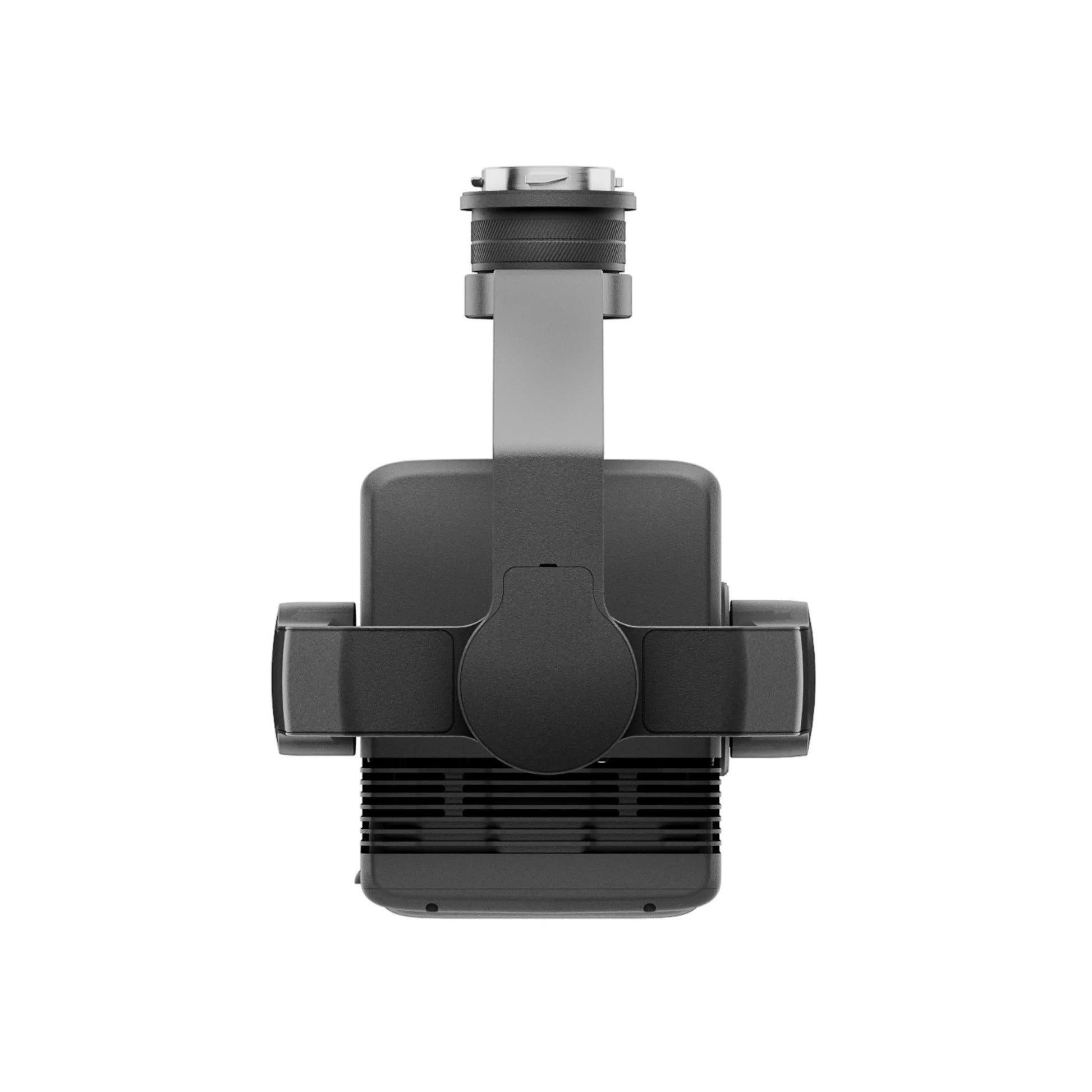

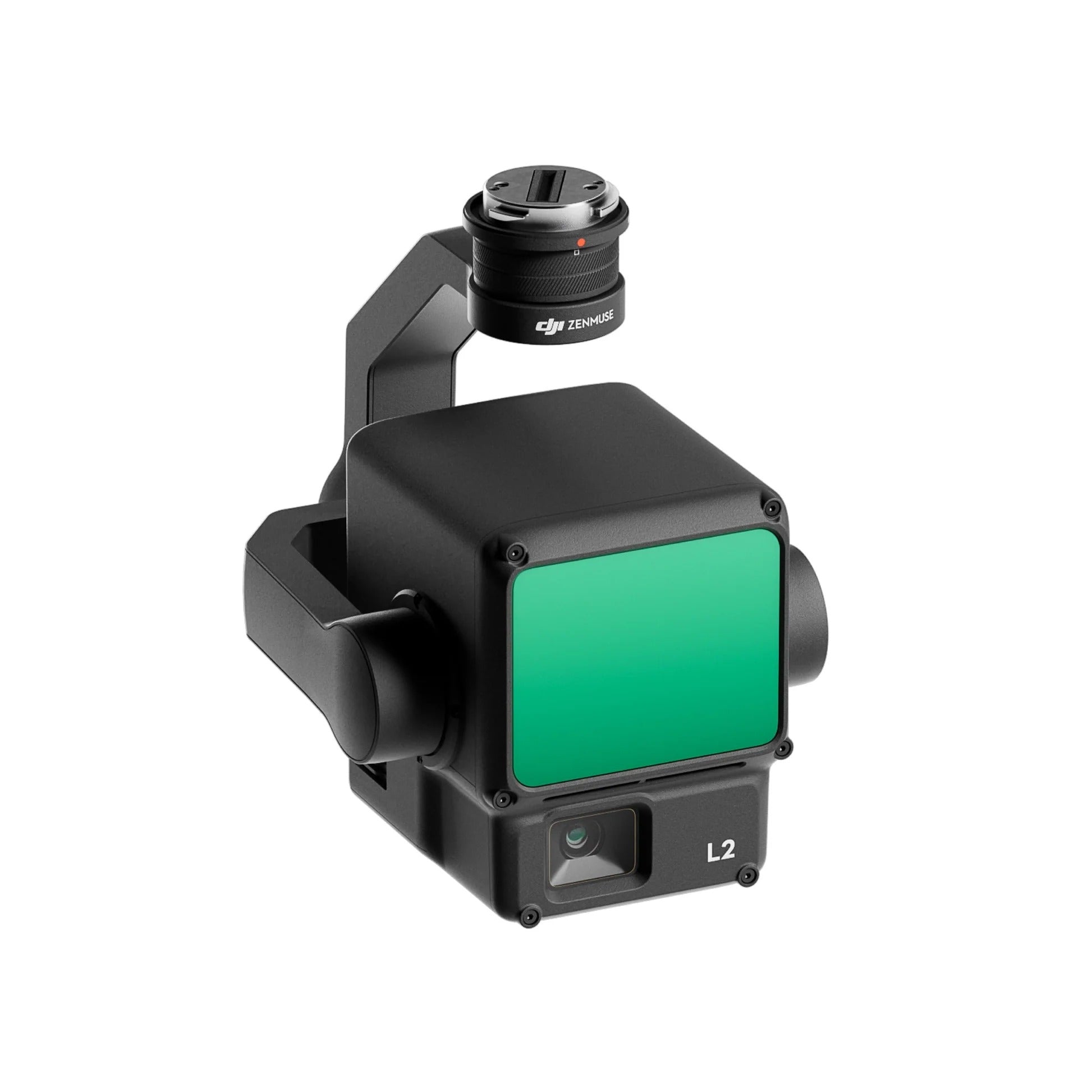

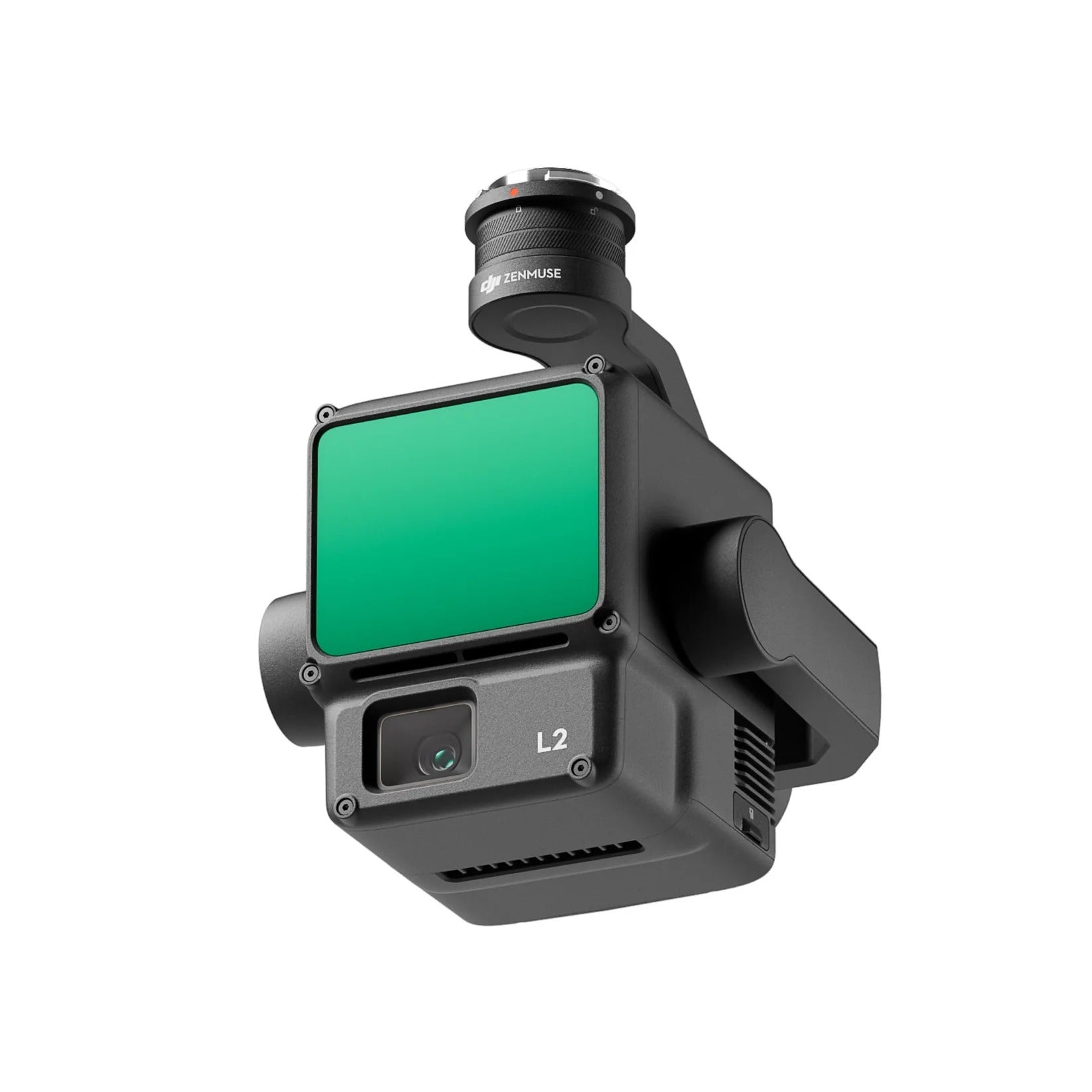

DJI Zenmuse L2

DJI Zenmuse L2

$15,490.00
$15,490.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  •  Frame-based LiDAR + RGB fusion in one integrated payload
  • Horizontal ~5 cm / Vertical ~4 cm accuracy under optimal conditions
  • Repetitive & non-repetitive scanning modes for mapping flexibility
  • Detection up to 450 m @ 50% reflectivity / 250 m @ 10% reflectivity
  • Up to 240,000 pts/s single return; 1,200,000 pts/s multi return
  • 4/3 CMOS RGB camera adds color to point cloud data
  • IP54 rating for moderate environmental tolerance
  • Approx. 905 g weight, size 155 × 128 × 176 mm
  • Compatible with Matrice 300 RTK, 350 RTK, 400
Request Wholesale
View full details

DJI Enterprise Drone Dealer in the USA

High-Precision 3D LiDAR Scanning

  • Integrates Livox LiDAR sensor with RGB camera for simultaneous high-resolution imaging and point cloud collection.
  • Captures centimeter-level 3D spatial data for complex terrains, infrastructure, and construction sites.
  • Applications: Surveying urban infrastructure, 3D modeling of bridges, buildings, and industrial sites.

Surveying & Mapping

  • Supports real-time point cloud processing and high-accuracy georeferencing with onboard GNSS/IMU system.
  • Generates 3D maps, topographic surveys, and digital twins quickly and efficiently.
  • Applications: Land surveys, construction site monitoring, urban planning, and environmental mapping.

Infrastructure Inspection

  • Combines LiDAR scanning with high-resolution RGB imaging for detailed inspections of critical infrastructure.
  • Detects structural deformations, cracks, or obstacles in hard-to-access areas.
  • Applications: Bridge and building inspections, railway and power line monitoring, industrial facility assessment.

Construction & Progress Monitoring

  • Enables frequent 3D scans to track construction progress and verify measurements.

  • Supports integration with BIM (Building Information Modeling) systems for planning and reporting.
  • Applications: Construction site monitoring, quality control, progress verification, and as-built documentation.

Versatile Enterprise Applications

  • Designed for surveying, construction, infrastructure, and industrial applications.
  • Compact and drone-compatible, enabling rapid aerial deployment in complex environments.
  • Applications: Mining surveys, pipeline monitoring, forestry mapping, and industrial site assessments.

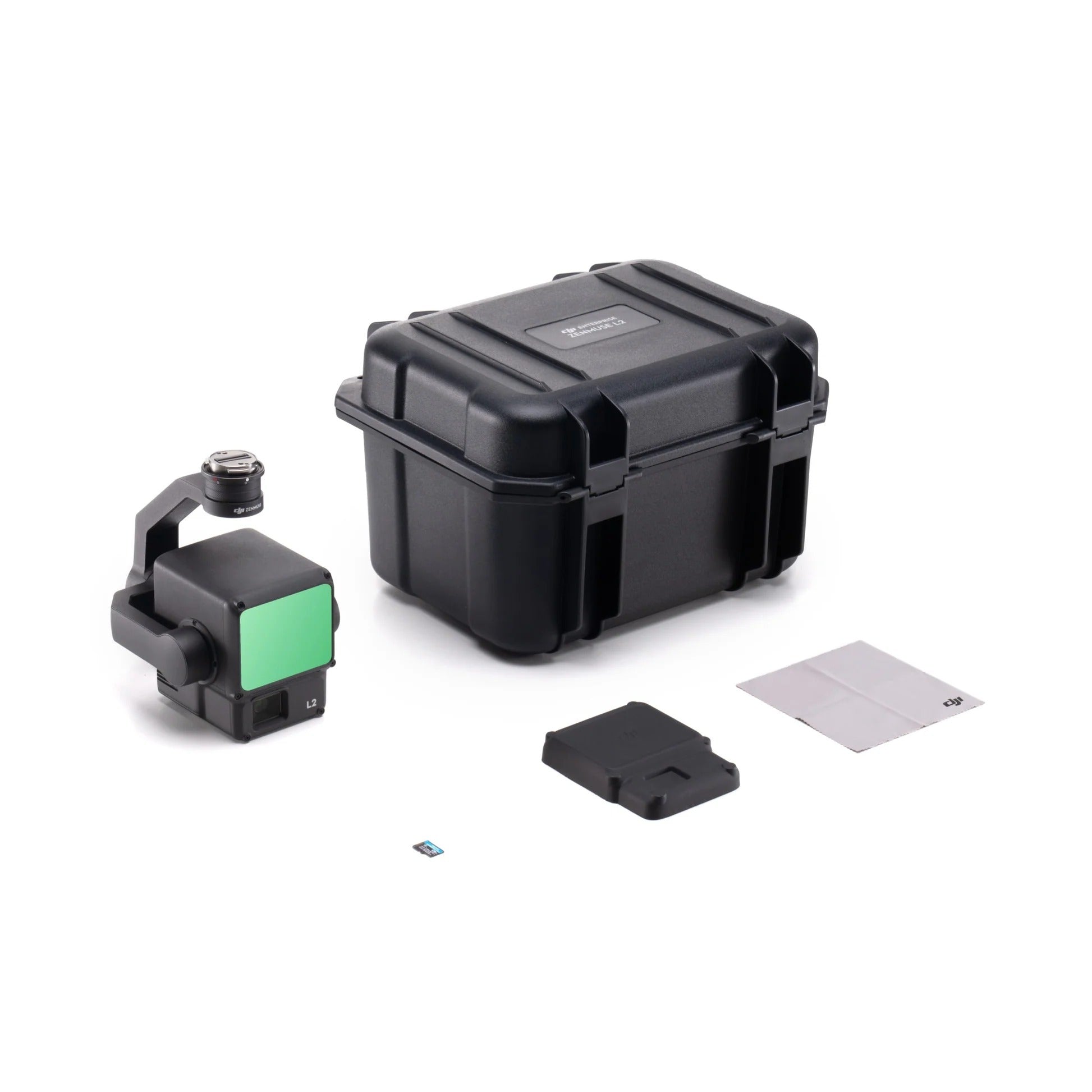

Packaging

  • 1x DJI Zenmuse L2
  • 1x DSLRPros Care Plus

Specs

General

  • Product Name: Zenmuse L2
  • Dimensions: 155 × 128 × 176 mm (L × W × H)
  • Weight: 905 ±5 g
  • Power Consumption: 28 W (typical); 58 W (maximum)
  • Ingress Protection Rating: IP54
  • Supported Aircraft: Matrice 400; Matrice 350 RTK; Matrice 300 RTK (requires DJI RC Plus)
  • Operating Temperature: −20°C to 50°C (−4°F to 122°F)
  • Storage Temperature: −20°C to 60°C (−4°F to 140°F)

System Performance

  • Detection Range: 450 m at 50% reflectivity (0 klx); 250 m at 10% reflectivity (100 klx)
  • Maximum Detection Range: 500 m
  • Point Cloud Rate: Single return up to 240,000 pts/s; multiple returns up to 1,200,000 pts/s
  • System Accuracy: Horizontal 5 cm at 150 m; Vertical 4 cm at 150 m
  • Real-Time Point Cloud Coloring: Reflectivity, height, distance, RGB

LiDAR

  • Ranging Accuracy (RMS 1σ): 2 cm at 150 m
  • Maximum Returns Supported: 5
  • Scanning Modes: Non-repetitive scanning; repetitive scanning
  • Field of View: Repetitive—70° (H) × 3° (V); Non-repetitive—70° (H) × 75° (V)
  • Minimum Detection Range: 3 m
  • Laser Beam Divergence: 0.2 mrad (horizontal); 0.6 mrad (vertical)
  • Laser Wavelength: 905 nm
  • Laser Spot Size: 4 cm × 12 cm at 100 m (FWHM)
  • Laser Pulse Frequency: 240 kHz
  • Laser Safety Class: Class 1 (IEC 60825-1:2014)
  • Accessible Emission Limit (AEL): 233.59 nJ
  • Reference Aperture: 23.85 mm effective (circular equivalent)
  • Max Pulse Emission Power (within 5 ns): 46.718 W

IMU System

  • IMU Update Frequency: 200 Hz
  • Accelerometer Range: ±6 g
  • Angular Velocity Meter Range: ±300 dps
  • Horizontal Positioning Accuracy (RTK FIX): 1 cm + 1 ppm
  • Vertical Positioning Accuracy (RTK FIX): 1.5 cm + 1 ppm

RGB Mapping Camera

  • Sensor: 4/3 CMOS, 20 MP effective pixels
  • Lens: 84° FOV; 24 mm equivalent focal length; f/2.8–f/11 aperture
  • Focus Range: 1 m to infinity (autofocus)
  • Shutter Speed: Mechanical 2–1/2000 s; Electronic 2–1/8000 s
  • Shutter Life: 200,000 actuations
  • Photo Size: 5280 × 3956 (4:3)
  • Photography Modes: Single shot 20 MP; Timed 20 MP
  • Timed Intervals (JPEG): 0.7–60 s
  • Timed Intervals (RAW / JPEG+RAW): 2–60 s
  • Video Codecs: H.264, H.265
  • Video Resolution: 4K 3840×2160 @30fps; FHD 1920×1080 @30fps
  • ISO Range: Video 100–6400; Photo 100–6400
  • Video Bitrate: 85 Mbps (4K); 30 Mbps (FHD)
  • Photo Format: JPEG, DNG (RAW)
  • Video Format: MP4 (H.264 / H.265)
  • Supported File System: exFAT

Gimbal

  • Stabilization System: 3-axis (tilt, roll, pan)
  • Angular Vibration Range: 0.01°
  • Mounting: Detachable DJI SKYPORT
  • Mechanical Range (structural): Tilt −143° to +43°; Pan ±105°
  • Controllable Range: Tilt −120° to +30°; Pan ±90°
  • Operation Modes: Follow, Free, Re-center

Data Storage

  • Raw Data Storage: Photos, IMU, point cloud, GNSS, calibration files
  • Point Cloud Storage: Real-time modeling data
  • Supported microSD Cards: UHS-I U3, ≥50 MB/s write speed; up to 256 GB
  • Recommended Cards: Lexar 1066x (64–256 GB); Kingston Canvas Go! Plus 128 GB

Post-Processing

  • Supported Software: DJI Terra
  • Export Formats: PNTS, LAS, PLY, PCD, S3MB
