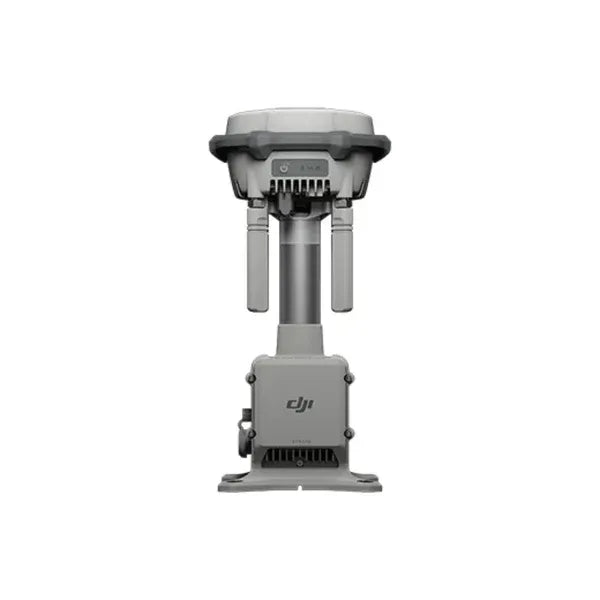

D-RTK 3 Relay Fixed Deployment Version

• 1x DJI D-RTK 3 Relay Fixed Deployment Version

GNSS Receiver

• GNSS frequency support
• GPS: L1C/A, L2C, L5
• BDS: B1I, B2I, B3I, B1C, B2a, B2b
• GALILEO: E1, E5a, E5b, E6
• GLONASS: L1, L2
• QZSS: L1C/A, L2C, L5
• L-Band support

System Accuracy*

• Supported modes: Base Station Mode (Broadcast Mode) and Relay Station Mode
• Single point accuracy (uncalibrated): Horizontal 1.5 m RMS
• Single point accuracy (uncalibrated): Vertical 3.0 m RMS
• Satellite-based differential accuracy convergence time: 20 mins
• Satellite-based differential accuracy: Horizontal 30 cm RMS
• Satellite-based differential accuracy: Vertical 40 cm RMS
• Network RTK calibration accuracy: Horizontal 1.0 cm RMS + 1 ppm
• Network RTK calibration accuracy: Vertical 3.0 cm RMS + 1 ppm

Rover Station Mode Accuracy

• RTK fixed survey accuracy: Horizontal 0.8 cm RMS + 1 ppm
• RTK fixed survey accuracy: Vertical 1.5 cm RMS + 1 ppm
• RTK tilt survey angle range: 0° to 60°
• RTK tilt survey accuracy: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)

Satellite-Based Precise Point Positioning*

• Supported frequencies: BDS B2b, GALILEO E6, L-Band**
• Convergence time: 20 mins
• Horizontal accuracy: 30 cm RMS
• Vertical accuracy: 40 cm RMS

Differential Data Transmission

• Base station and relay station modes record RTCM 3.2 raw observation data in DAT format
• Rover station and calibration modes support RTCM v3.0, v3.1, v3.2, v3.3
• Supported MSM protocols: MSM4, MSM5, MSM6, MSM7
• Recommended to use receivers supporting four or more GNSS systems

Initialization Reliability

• Initialization reliability greater than 99.9%

Video Transmission

• Video transmission system: O4 Enterprise
• Relay Station Mode operating frequency: 2.4 GHz, 5.2 GHz, 5.8 GHz
• Base Station Mode operating frequency: 2.4 GHz, 5.8 GHz
• Rover Station Mode operating frequency: BLE 2.4 GHz
• Operating frequencies vary by country and region

Transmitter Power (EIRP)

• 2.4000–2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
• 5.150–5.250 GHz: <23 dBm (CE/FCC)
• 5.725–5.850 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Bluetooth

• Bluetooth protocol: Bluetooth 5.1
• Bluetooth frequency: 2.400–2.4835 GHz
• Bluetooth transmitter power: <10 dBm

Maximum Transmission Distance (Unobstructed, Free of Interference)

• Base station to Matrice 400: FCC 40 km; SRRC/CE/JP 20 km
• Base station to other aircraft: FCC 15 km; SRRC 12 km; CE/JP 8 km
• Rover station to mobile devices: 30 m
• Measured in unobstructed outdoor environments free of interference
• Data represents one-way, non-return flight distance under each standard
• Always pay attention to RTH reminders during flight operations

Relay Station Mode Transmission Distance (Unobstructed, Free of Interference)

• FCC aircraft to relay station: 25 km
• SRRC aircraft to relay station: 12 km
• CE aircraft to relay station: 10 km
• Relay station to remote controller or DJI Dock 3: Recommended within 1 km; maximum 3 km
• CE relay station to remote controller or DJI Dock 3: Recommended within 300 m; maximum 1 km
• Relay station deployment requires prior field survey
• Sites marked as unsuitable for dock deployment or RTK positioning are not recommended
• Improper deployment may affect relay upgrades and log downloads
• Recommended installation on rooftops, towers, or elevated, unobstructed locations

Transmission Distance (Unobstructed, With Interference)

• Strong interference (urban): approx. 1.5–5 km
• Medium interference (suburban): approx. 5–15 km
• Low interference (remote or seaside): approx. 15–25 km
• Tested under FCC standards; provided for reference only

Transmission Distance (Obstructed, With Interference)

• Low interference obstructed by buildings: approx. 0–0.5 km
• Low interference obstructed by trees: approx. 0.5–3 km
• Tested under FCC standards; provided for reference only

Relay Station Range Extension Effect

• Severe obstruction (buildings or mountains): 3x to 5x performance improvement
• Mild obstruction (trees or glass): 1x to 3x performance improvement
• Relay station must be deployed in elevated, unobstructed locations

Antenna

• OcuSync 4 directional antennas ×4, 2T4R
• Standard reverse-polarity SMA antenna connector

Other

• D-RTK 3 Relay Fixed Deployment Version compatible with DJI Cellular Dongle 2

Electrical Properties

• Relay Station power consumption: 14.5 W
• Base Station power consumption: 7 W
• Rover Station power consumption: 6.2 W
• Maximum power consumption with heating: 36.5 W
• Multifunctional Station power port: USB Type-C
• Relay Fixed Deployment Version ports: USB Type-C and Ethernet (PoE)
• Supported adapter: USB PD 3.0, 9–15 V output
• Non-recommended 5 V chargers require device to be powered off before charging
• Supported PoE supplies: IEEE 802.3bt Type 4 (52–57 V, 99.9 W max)
• Supported PoE supplies: IEEE 802.3bt Type 3 (50–57 V, 60 W max)
• Supported PoE supplies: IEEE 802.3at Type 2 (50–57 V, 30 W max)

Battery Operating Time (Normal Temperature)*

• Relay Station runtime: approx. 4 hours
• Base Station runtime: approx. 7 hours
• Rover Station runtime: approx. 10 hours
• Relay Fixed Deployment Version runtime: approx. 4 hours
• When powered by PoE, battery enters preservation mode and does not fully charge
• After PoE disconnection, internal battery provides up to 2 hours of runtime
• Battery performance may decrease in low-temperature environments

Ethernet Cable Requirements

• Multifunctional Station does not support Ethernet
• Relay Fixed Deployment Version requires Cat 6 twisted-pair cable
• Maximum Ethernet cable length: 100 m
• Supported cable outer diameter: 6–9 mm

Battery

• Battery type: LiPo
• Capacity: 6500 mAh
• Energy: 46.8 Wh

Physical Characteristics

• Operating temperature (multifunctional): -20° to 55° C (-4° to 131° F)
• Operating temperature (relay deployment): -30° to 55° C (-22° to 131° F)
• Charging power is limited when shell temperature exceeds 48° C
• Cold-stored devices must warm until internal battery exceeds 0° C before charging
• Hot-stored devices must cool until internal battery is below 45° C before charging
• Type 4 PoE enables heating for low-temperature startup on relay deployment version
• Maximum operating altitude: 6000 m
• Ingress protection rating: IP67
• PoE port provides IPX5 protection; IP67 requires dedicated PoE connector and cable
• Drop resistance: 2 m with pole
• Dimensions (multifunctional): 163 × 89 mm
• Dimensions (relay deployment): 163 × 344 mm
• Weight (multifunctional): approx. 1.26 kg
• Weight (relay deployment): approx. 2.24 kg

Footnotes

• * Measurement accuracy depends on satellite visibility, ionospheric conditions, electromagnetic environment, and multipath interference
• ** Satellite-based PPP L-band support will be enabled in later versions
• *** Intense vibration or rapid rotation may affect inertial measurement accuracy
