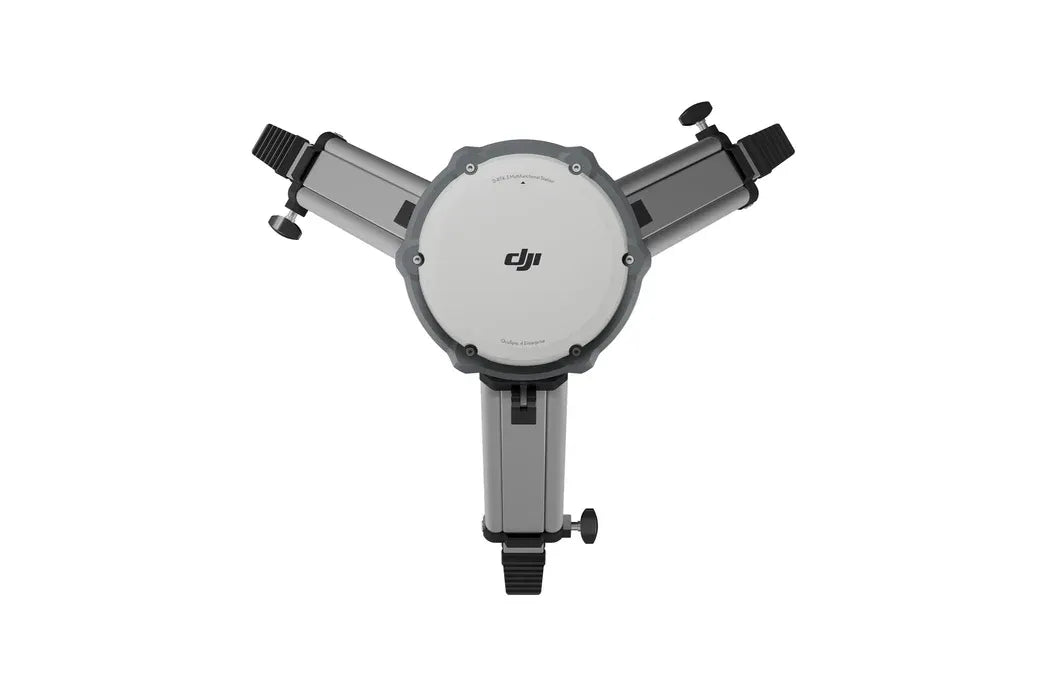

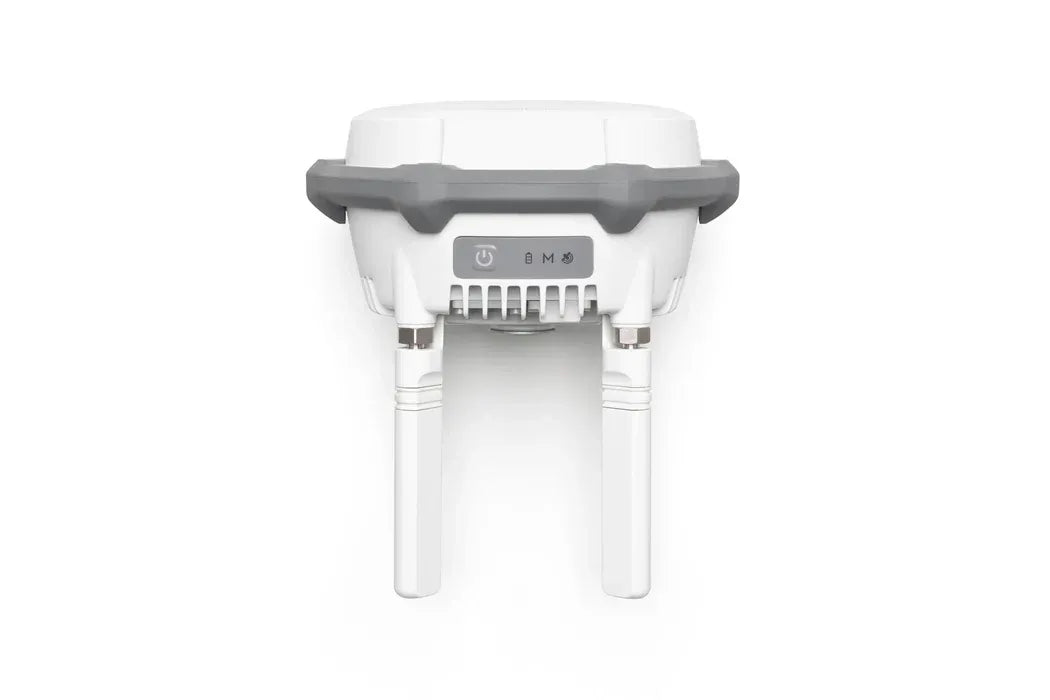

DJI D-RTK 3 Multifunctional Station

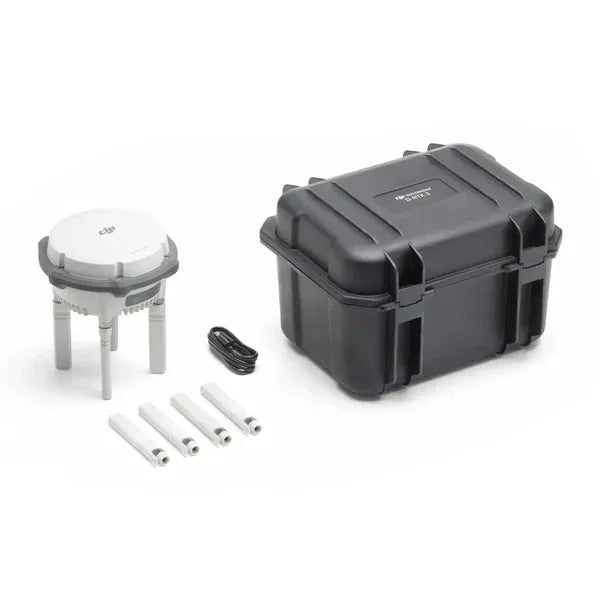

• 1x D-RTK 3 Multifunctional Station
• 4x Spare OcuSync Directional Antennas
• 1x USB-A to USB-C Cable

GNSS System

• GNSS receiver with multi-constellation support (GPS, BDS, GALILEO, GLONASS, QZSS)
• Supported frequencies: GPS L1C/A, L2C, L5
• Supported frequencies: BDS B1I, B2I, B3I, B1C, B2a, B2b
• Supported frequencies: GALILEO E1, E5a, E5b, E6
• Supported frequencies: GLONASS L1, L2
• Supported frequencies: QZSS L1C/A, L2C, L5
• L-Band support

Operating Modes

• Base station mode (broadcast mode)
• Relay station mode
• Rover station mode

Base Station Accuracy

• Single point accuracy (uncalibrated): horizontal 1.5 m RMS
• Single point accuracy (uncalibrated): vertical 3.0 m RMS
• Satellite-based differential convergence time: 20 minutes
• Satellite-based differential accuracy: horizontal 30 cm RMS
• Satellite-based differential accuracy: vertical 40 cm RMS
• Network RTK calibration accuracy: horizontal 1.0 cm RMS + 1 ppm
• Network RTK calibration accuracy: vertical 3.0 cm RMS + 1 ppm

Rover Station Accuracy

• RTK fixed survey accuracy: horizontal 0.8 cm RMS + 1 ppm
• RTK fixed survey accuracy: vertical 1.5 cm RMS + 1 ppm
• RTK tilt survey angle range: 0° to 60°
• RTK tilt survey accuracy: 8 mm + 0.7 mm per degree (≤2 cm within 30°)

Precise Point Positioning (PPP)

• Supported frequencies: BDS B2b, GALILEO E6, L-Band (future support)
• Convergence time: 20 minutes
• Horizontal accuracy: 30 cm RMS
• Vertical accuracy: 40 cm RMS

Differential Data & Reliability

• RTCM 3.2 raw observation data recording in DAT format (base/relay)
• RTCM protocol support: v3.0, v3.1, v3.2, v3.3
• MSM protocol support: MSM4, MSM5, MSM6, MSM7
• Initialization reliability: >99.9%

Video Transmission & Communication

• Video transmission system: O4 Enterprise
• Relay station operating frequencies: 2.4 GHz / 5.2 GHz / 5.8 GHz
• Base station operating frequencies: 2.4 GHz / 5.8 GHz
• Rover station communication: Bluetooth 5.1 (2.4 GHz)

Transmitter Power (EIRP)

• 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
• 5.150–5.250 GHz: <23 dBm (FCC/CE)
• 5.725–5.850 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Maximum Transmission Distance (Unobstructed, No Interference)

• Base station to Matrice 400: up to 40 km (FCC), 20 km (CE/SRRC/JP)
• Base station to other aircraft: up to 15 km (FCC), 12 km (SRRC), 8 km (CE/JP)
• Rover station to mobile device: up to 30 m

Relay Station Mode – Maximum Transmission Distance

• FCC: aircraft to relay up to 25 km; relay to RC/Dock 3 up to 3 km
• SRRC: aircraft to relay up to 12 km; relay to RC/Dock 3 up to 3 km
• CE: aircraft to relay up to 10 km; relay to RC/Dock 3 up to 1 km

Transmission Distance (With Interference)

• Strong interference (urban): approx. 1.5–5 km
• Medium interference (suburban): approx. 5–15 km
• Low interference (remote/coastal): approx. 15–25 km
• Obstructed by buildings: approx. 0–0.5 km
• Obstructed by trees: approx. 0.5–3 km

Relay Station Range Extension Effect

• Severe obstruction (buildings, terrain): 3×–5× improvement
• Mild obstruction (trees, glass): 1×–3× improvement

Antenna

• OcuSync 4 directional antennas ×4 (2T4R)
• Reverse polarity SMA connectors

Electrical Properties

• Power consumption: relay 14.5 W, base 7 W, rover 6.2 W
• Maximum power consumption with heating: 36.5 W
• Power interface: USB Type-C
• Supported charging standard: USB PD 3.0 (9–15 V)

Relay Fixed Deployment Version (PoE)

• Compatible with DJI Cellular Dongle 2
• Power input: USB Type-C and Ethernet (PoE)
• PoE standards supported: IEEE 802.3bt Type 4 / Type 3, IEEE 802.3at Type 2
• PoE heating supported for low-temperature startup

Battery & Runtime

• Battery type: LiPo
• Capacity: 6500 mAh
• Energy: 46.8 Wh
• Runtime (normal temperature): relay 4 hrs, base 7 hrs, rover 10 hrs

Environmental & Physical Characteristics

• Operating temperature: -20° to 55°C (multifunctional), -30° to 55°C (fixed)
• Maximum operating altitude: 6000 m
• Ingress protection: IP67 (IPX5 at PoE port without sealed connector)
• Drop resistance: 2 m (with pole)
• Dimensions: 163 × 89 mm (multifunctional), 163 × 344 mm (fixed)
• Weight: approx. 1.26 kg (multifunctional), 2.24 kg (fixed)
