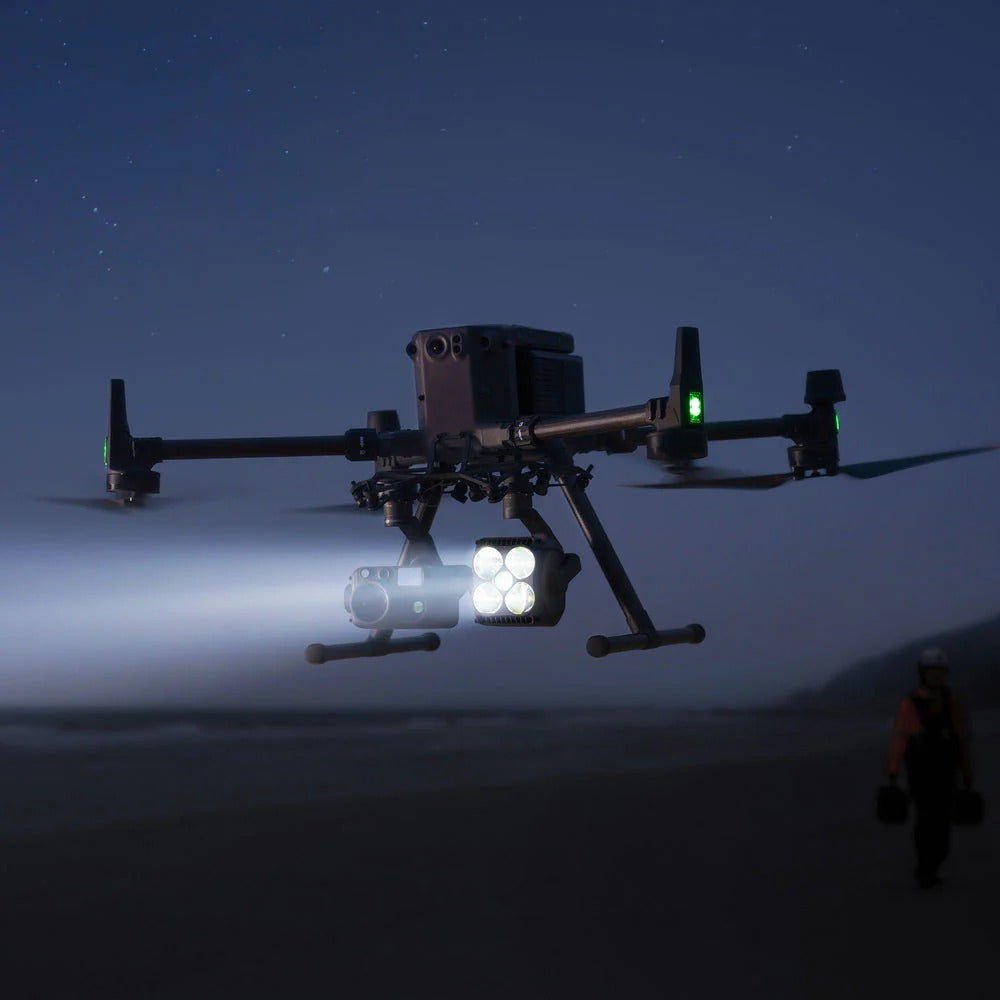

• DJI Matrice 350 RTK Drone with lights flying in the night sky
1 6

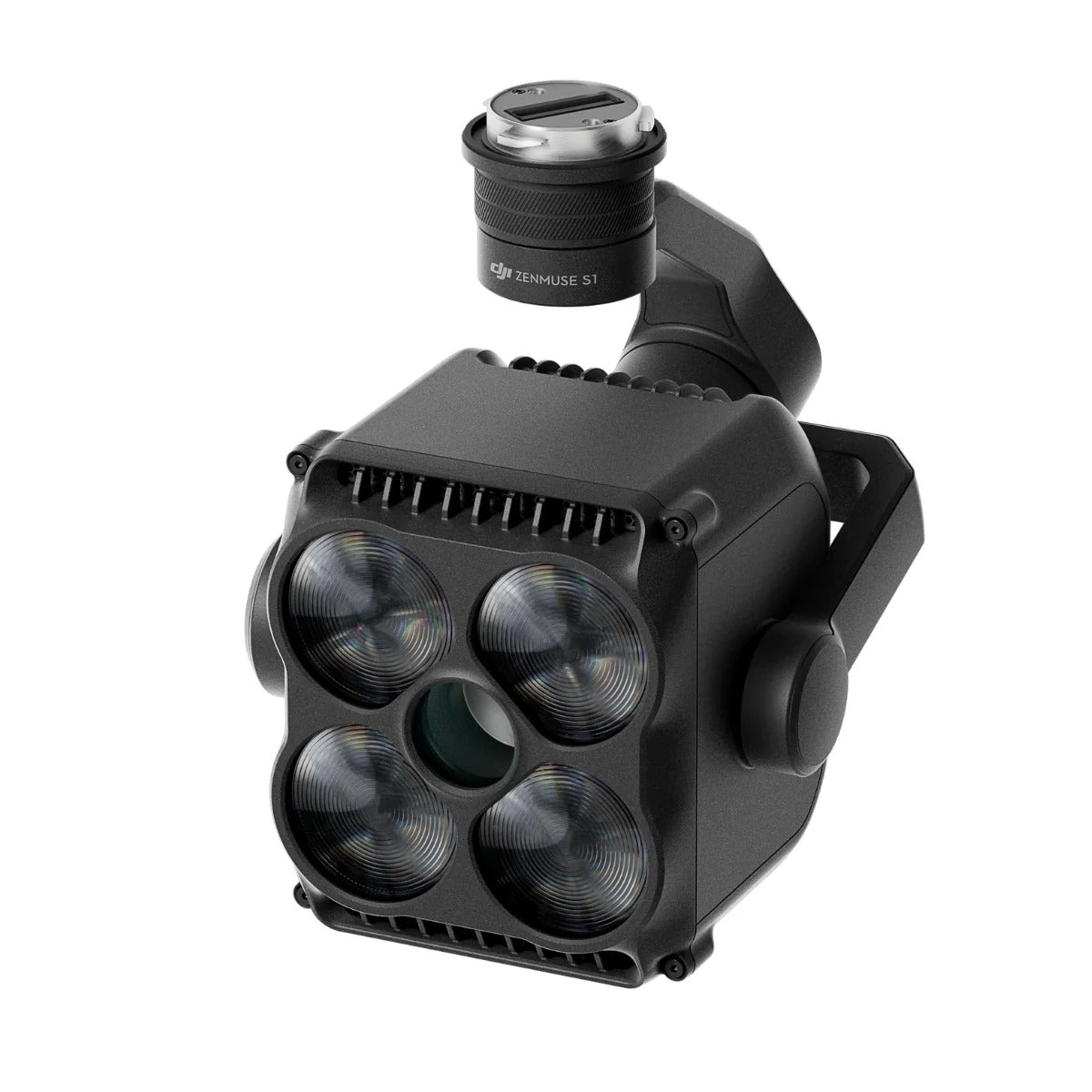

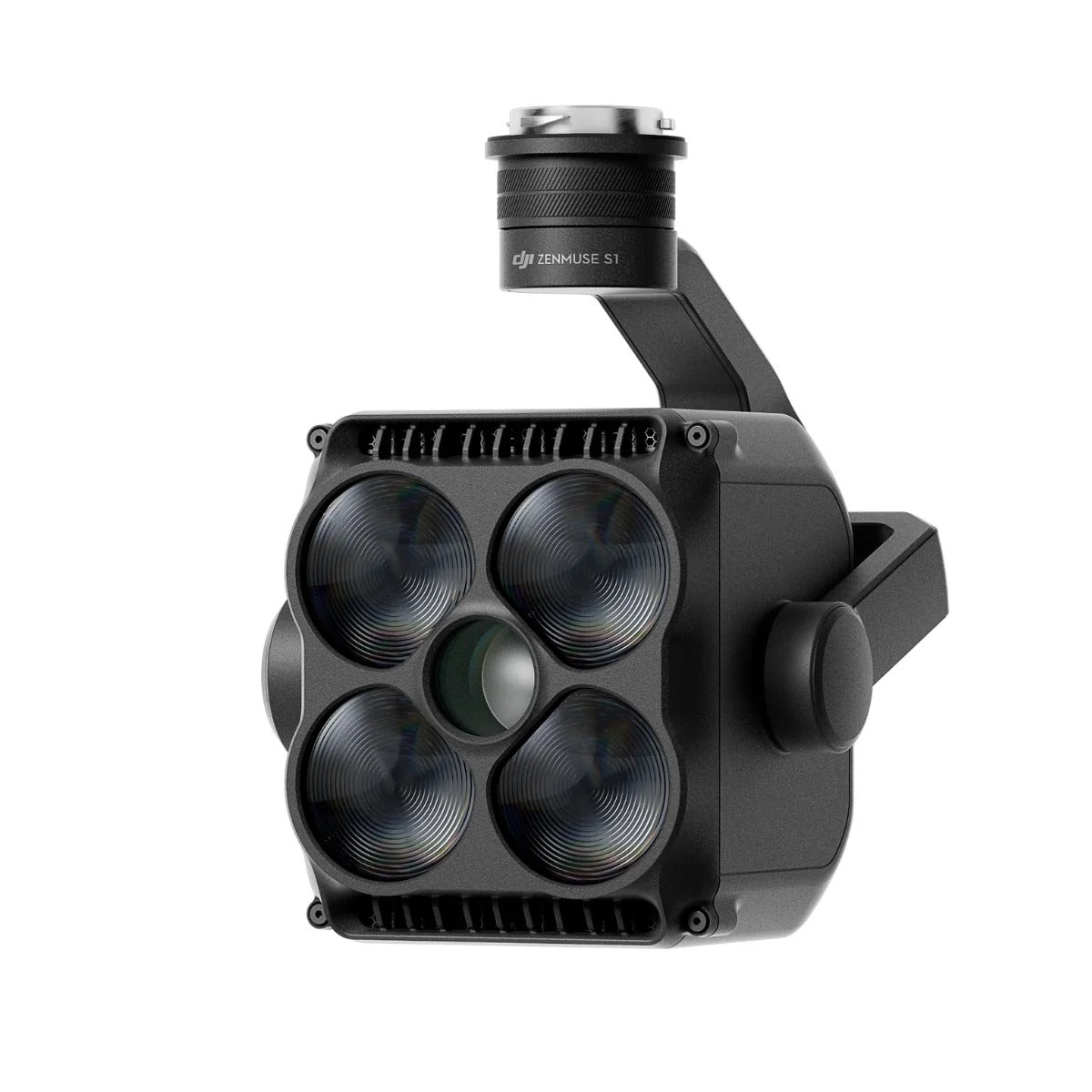

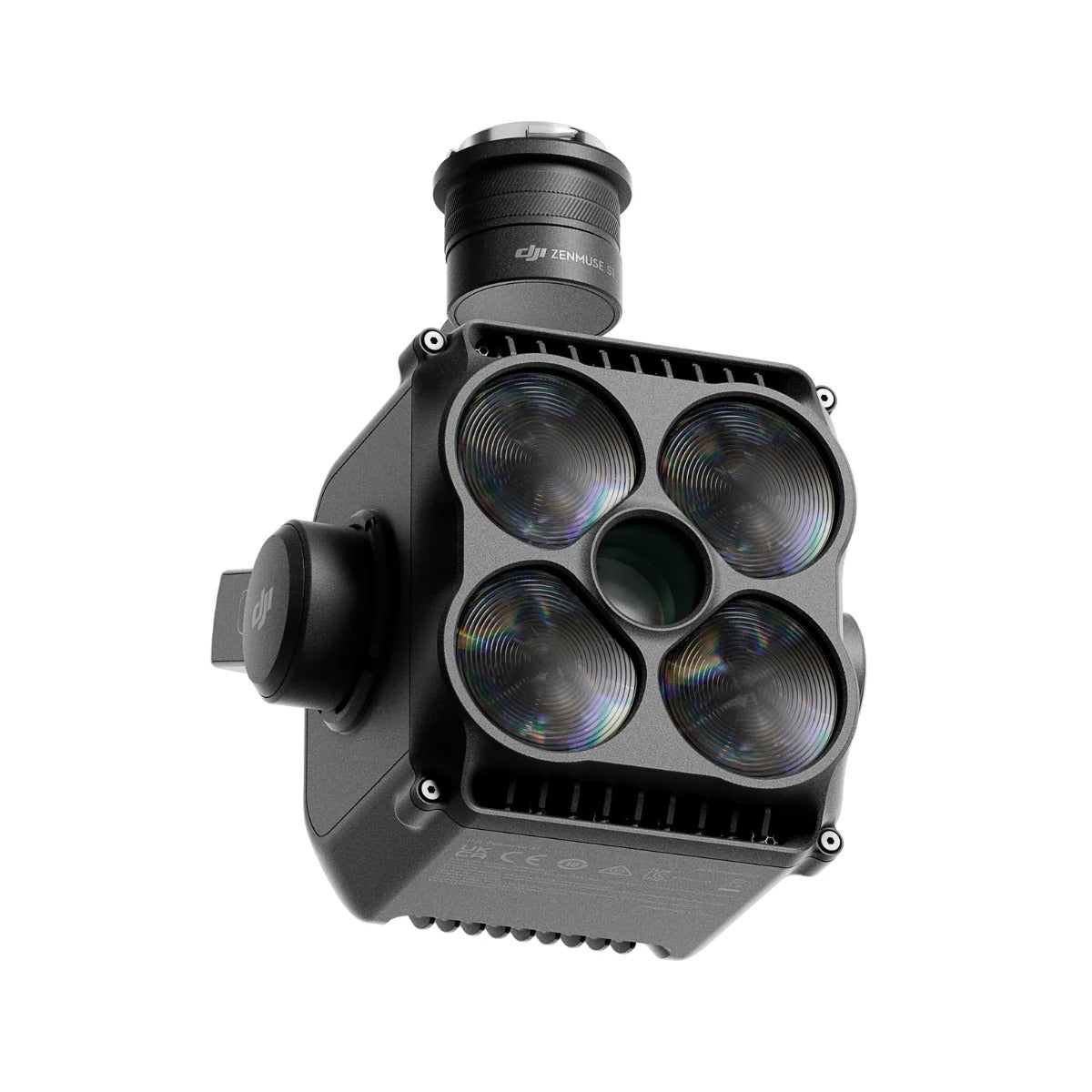

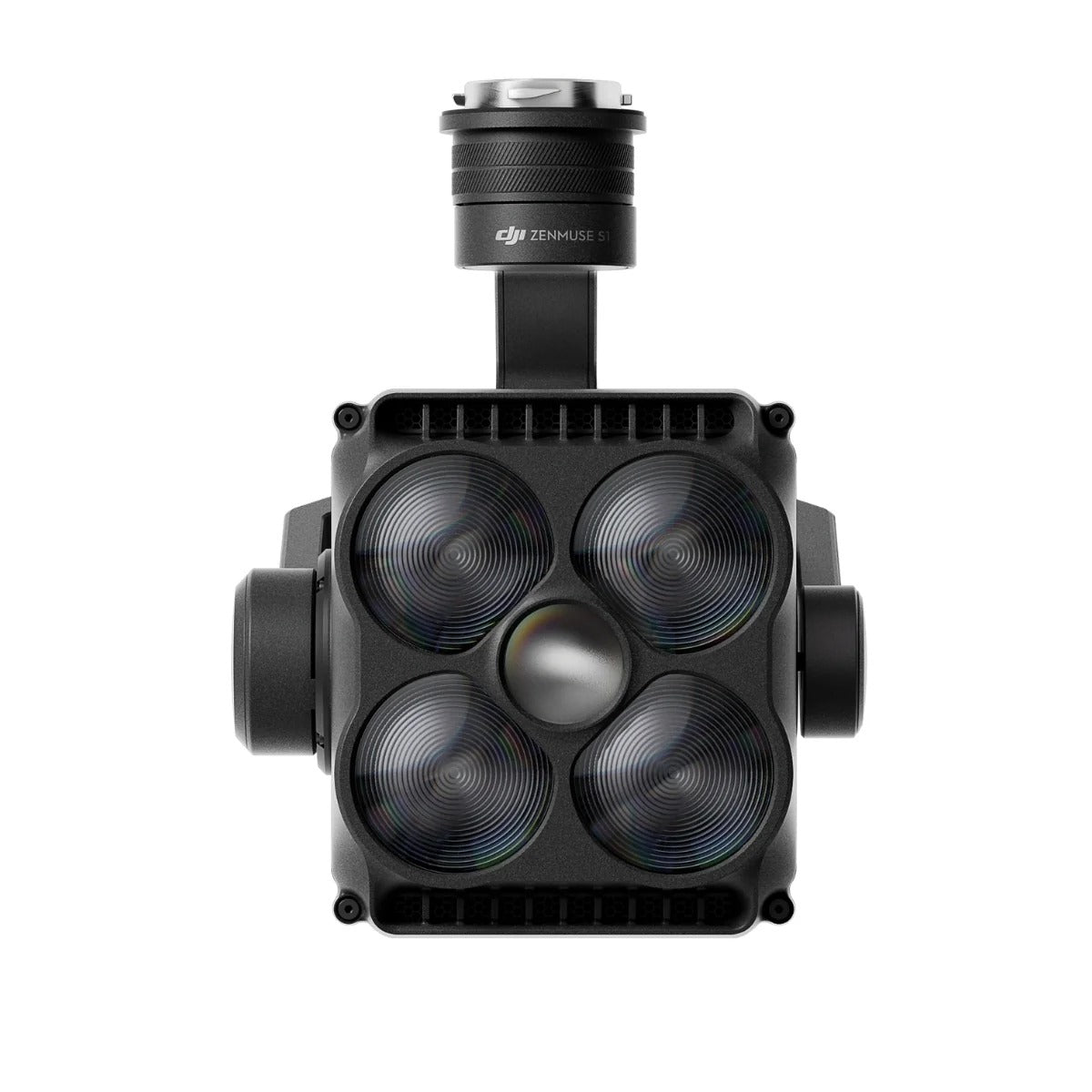

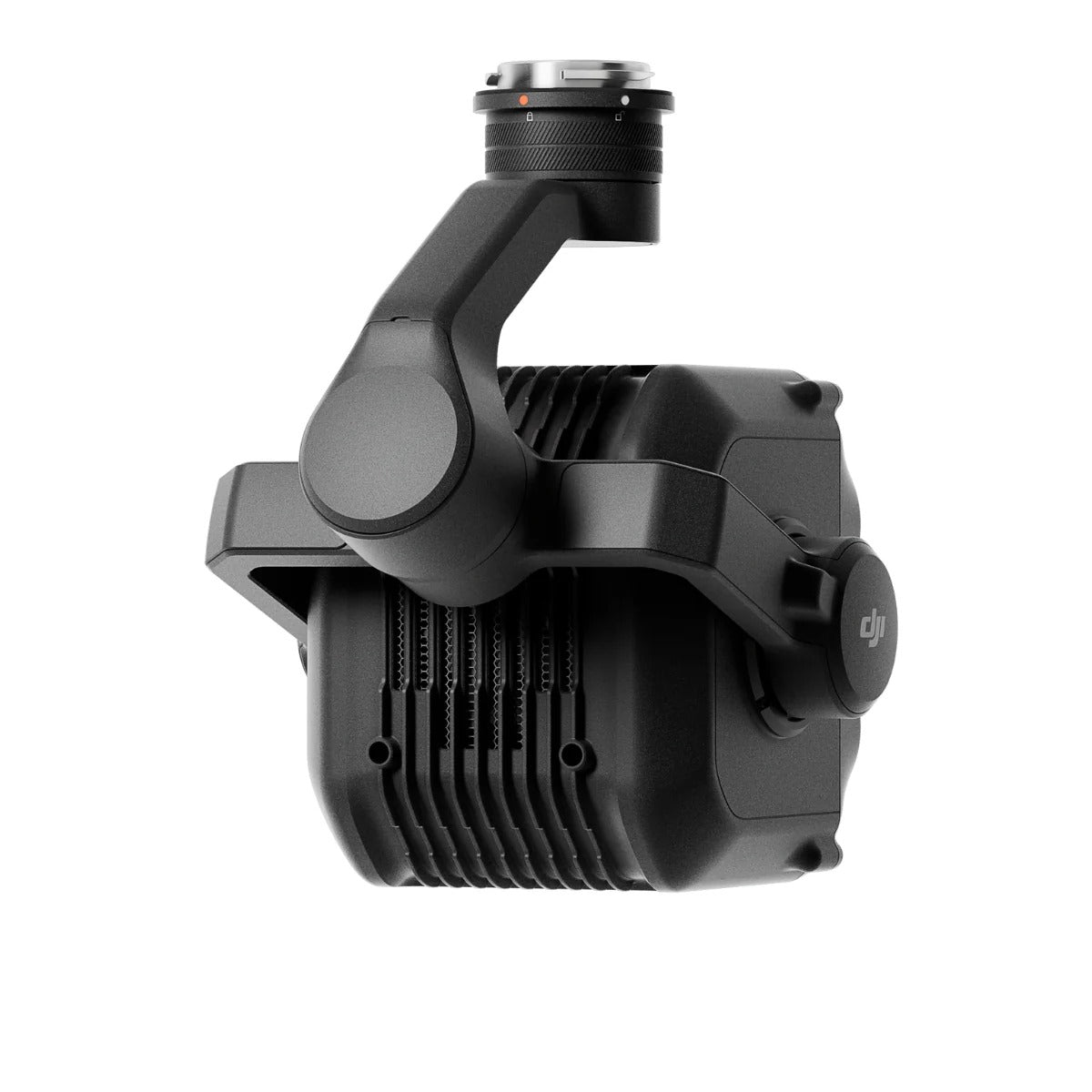

DJI Zenmuse S1 Spotlight

DJI Zenmuse S1 Spotlight

  • Advanced LEP technology provides 40 lux central illuminance at 100m.
  • Powerful lighting reaches observation distances of up to 500 meters.
  • Ultra-efficient 24 W power consumption helps maintain aircraft flight time.
  • Lightweight 0.76 kg design allows for flexible multi-payload mounting.
  • IP54 rating ensures reliable performance in dust and water conditions.
  • Intelligent beam alignment syncs spotlight with camera view in real-time.
  • Four distinct modes include low, high, both on, and strobe.
  • Safety features include automatic dimming and low surface contact temperature.
  • Fully compatible with Matrice 400, 350 RTK, and 300 RTK.
Request Wholesale

Specs

Zenmuse S1

  • Product name: Zenmuse S1
  • Weight: 760 ±10 g
  • Dimensions: 125 × 152 × 171 mm (L × W × H)
  • Rated power: 120 W (Matrice 400), 68 W (Matrice 300 RTK / Matrice 350 RTK)
  • Supported aircraft: Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus)
  • Eye safety class: IEC 62471 Risk Group 1
  • Shell temperature: <50°C (122°F)
  • Ingress protection rating: IP54
  • Operating temperature: -20°C to 40°C (-4°F to 104°F)
  • Storage temperature: -20°C to 60°C (-4°F to 140°F)

Gimbal System

  • Stabilization: 3-axis (tilt, roll, pan)
  • Angular vibration range: ±0.01° (hover), ±0.02° (flight)
  • Mounting: Detachable DJI SKYPORT
  • Mechanical range: Tilt -129° to +73°, Roll ±55.8°, Pan ±327°
  • Controllable range: Tilt -120° to +60°, Pan ±320°
  • Operation modes: Follow, Free, Re-center

Illumination Performance

  • Maximum central illuminance: 40 lux @100 m (Matrice 400), 35 lux @100 m (M300/M350)
  • Low beam illuminance: 20 lux @100 m (M400), 13 lux @100 m (M300/M350)
  • High beam illuminance: 30 lux @100 m
  • Effective illumination angle: 15° ±1° (low/both), 4° ±0.5° (high)
  • Color temperature: 6500K (low), 7500K (high)
  • Dimming mode: Analog dimming
  • Effective illumination distance: Up to 500 m

Lighting Control & Modes

  • Lighting control: On/off and brightness adjustment
  • Strobe mode: 5 Hz
  • Lighting modes: Low beam, High beam, Both On
  • Remote controller buttons: Customizable lighting control
  • Gimbal synchronization: Supports synchronized control with other payloads

Protection & Intelligent Functions

  • Eye protection: Brightness automatically limited to 40% when not in flight
  • Payload protection: Temperature, overcurrent, and power protection
  • Dual spotlight sync: Two Zenmuse S1 units can be controlled simultaneously (Matrice 400)
  • Intelligent beam alignment: Automatically aligns with Zenmuse H30 Series camera view

Packaging

  • 1x Zenmuse S1 Spotlight Payload
  • 1x Gimbal Port Protection Cap
  • 1x Storage Box
  • 1x Lens Protection Rubber Cap
  • 1x Lens Cleaning Cloth
  • 1x Manuals
View full details

DJI Enterprise Drone Dealer in the USA

Nighttime Industrial Inspections

  • Equipped with high-intensity adjustable spotlight and a high-resolution camera, enabling clear imaging in low-light or nighttime conditions.
  • Ideal for inspecting energy infrastructure, pipelines, construction sites, and industrial facilities after dark.
  • Applications: Power line inspections at night, wind turbine maintenance, solar farm monitoring, and industrial site inspections.

Public Safety & Emergency Response

  • Provides bright illumination and aerial imaging to support emergency response operations.
  • Enables teams to identify hazards, locate missing persons, and monitor incidents in low-visibility environments.
  • Applications: Search & rescue, firefighting operations, law enforcement surveillance, disaster assessment.

Security & Surveillance

  • Combines spotlight lighting with high-resolution camera for real-time monitoring.
  • Supports remote-controlled illumination to enhance visibility during security patrols.
  • Applications: Nighttime perimeter surveillance, critical infrastructure monitoring, event security, and emergency perimeter control.

Versatile Enterprise Applications

  • Designed for energy, utilities, public safety, infrastructure inspection, and security operations.
  • Drone-compatible and portable, enabling rapid deployment in large or hard-to-access areas.
  • Applications: Nighttime facility inspections, industrial security patrols, emergency response lighting, and remote site monitoring.
